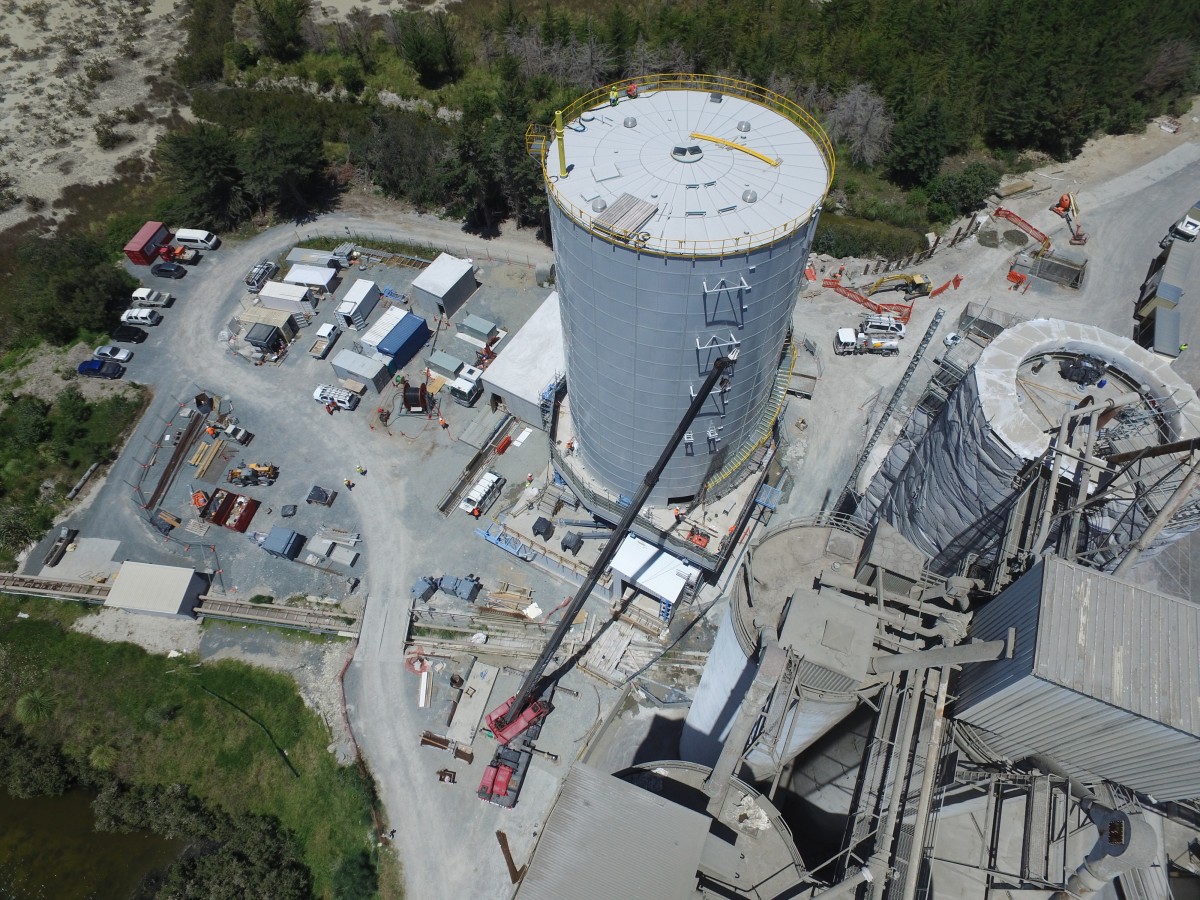

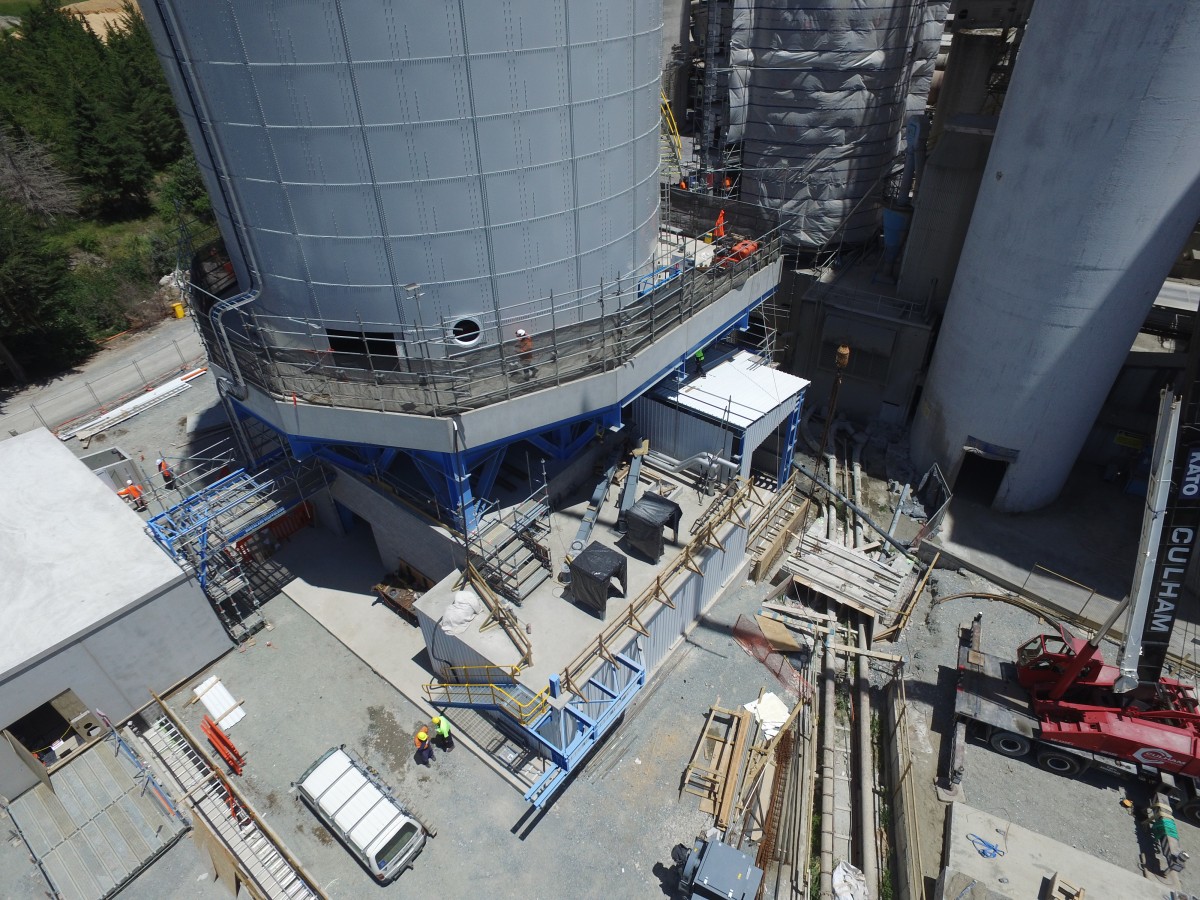

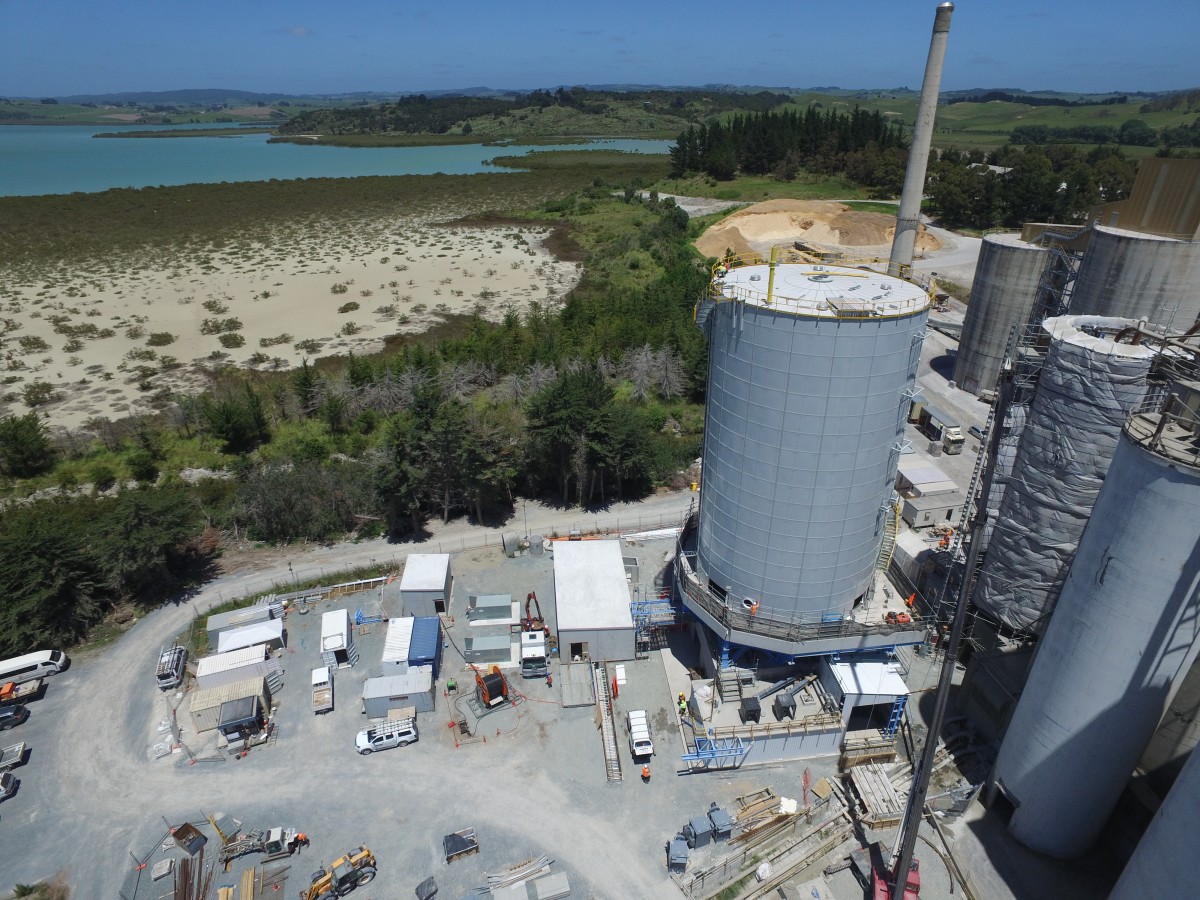

Portland, New Zealand

Cement
Bolted RTP Tank

• Quantity: 1
• Diameter: 53.48 feet (16.30 meters)
• Height: 87.39 feet (26.63 meters)
• Volume: 196,267 cubic feet (5,557 cubic meters)

View Case Study

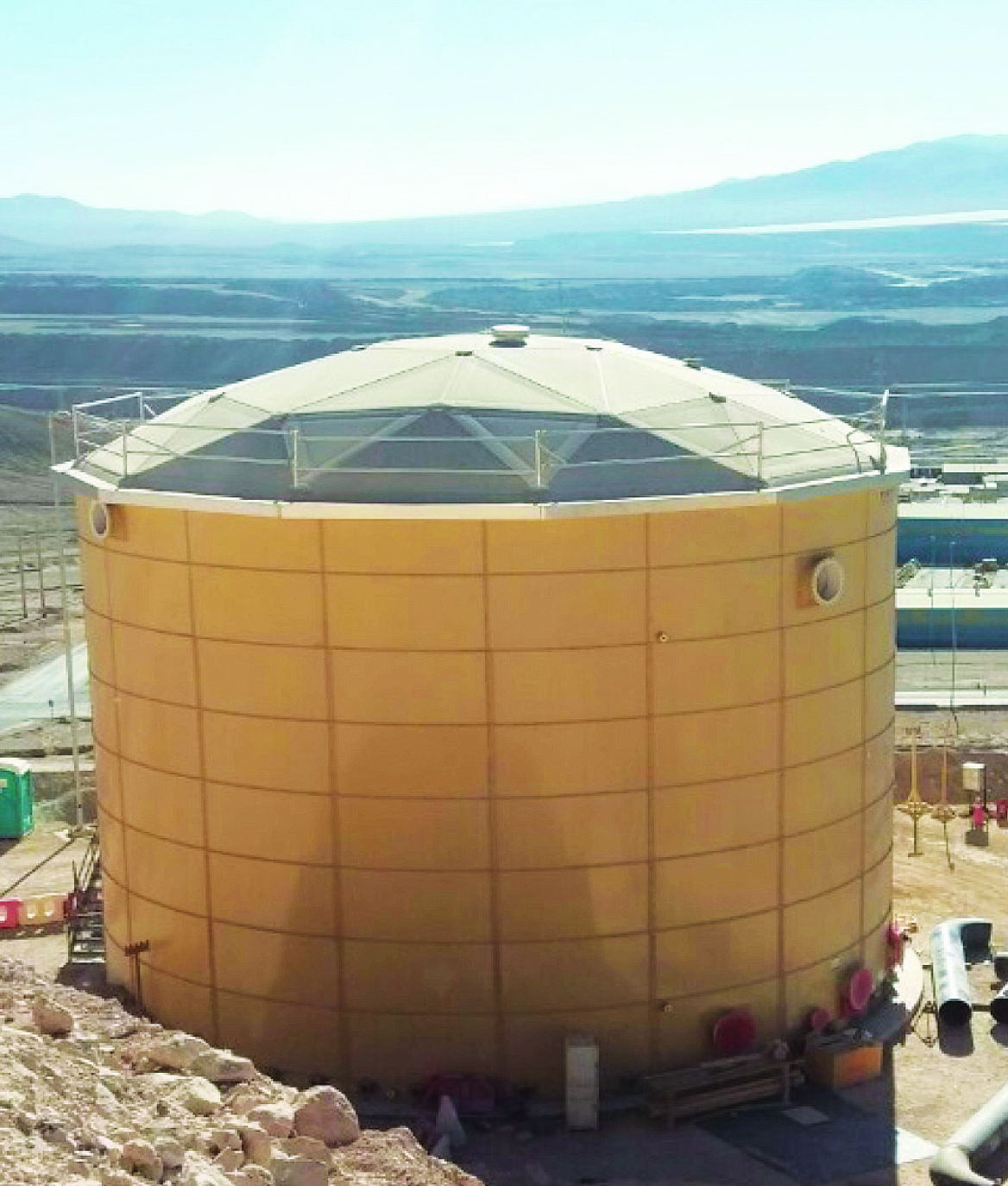

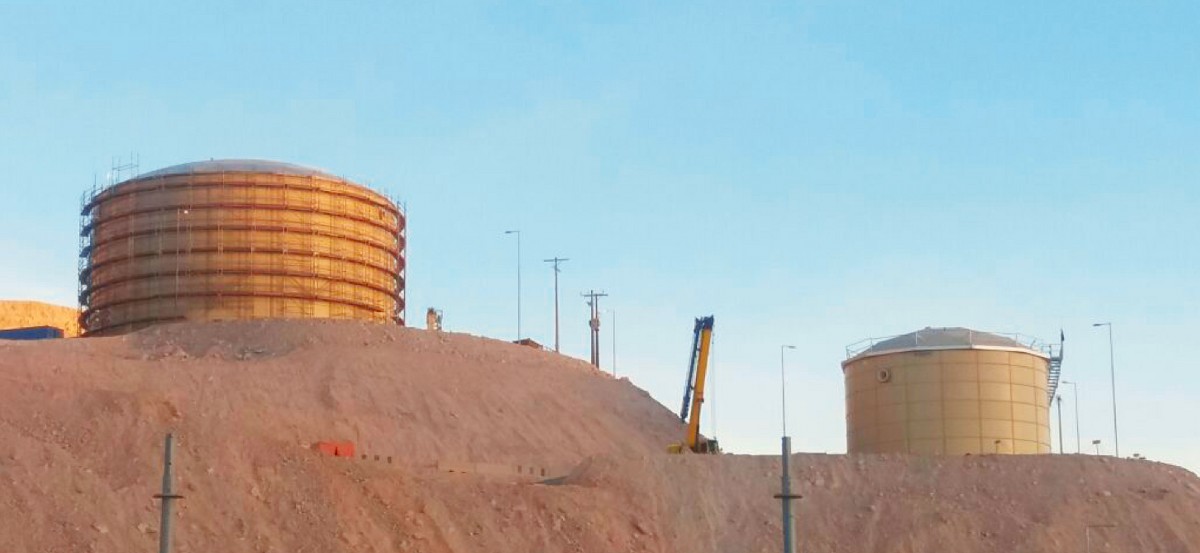

Antofagasta, Chile

Raw Water & Demineralized Water
Bolted RTP Tank + Aluminum Geodesic Dome

• Quantity: 1
• Diameter: 53.48 ft (16.3 m)
• Height: 39.05 ft (11.9 m)
• Volume: 600,832 US gallons (2,274 cubic meters)

• Quantity: 1
• Diameter: 92.1 ft (28.07 m)
• Height: 58.39 ft (17.8 m)
• Volume: 2,580,052 US gallons (9,766 cubic meters)

View Case Study

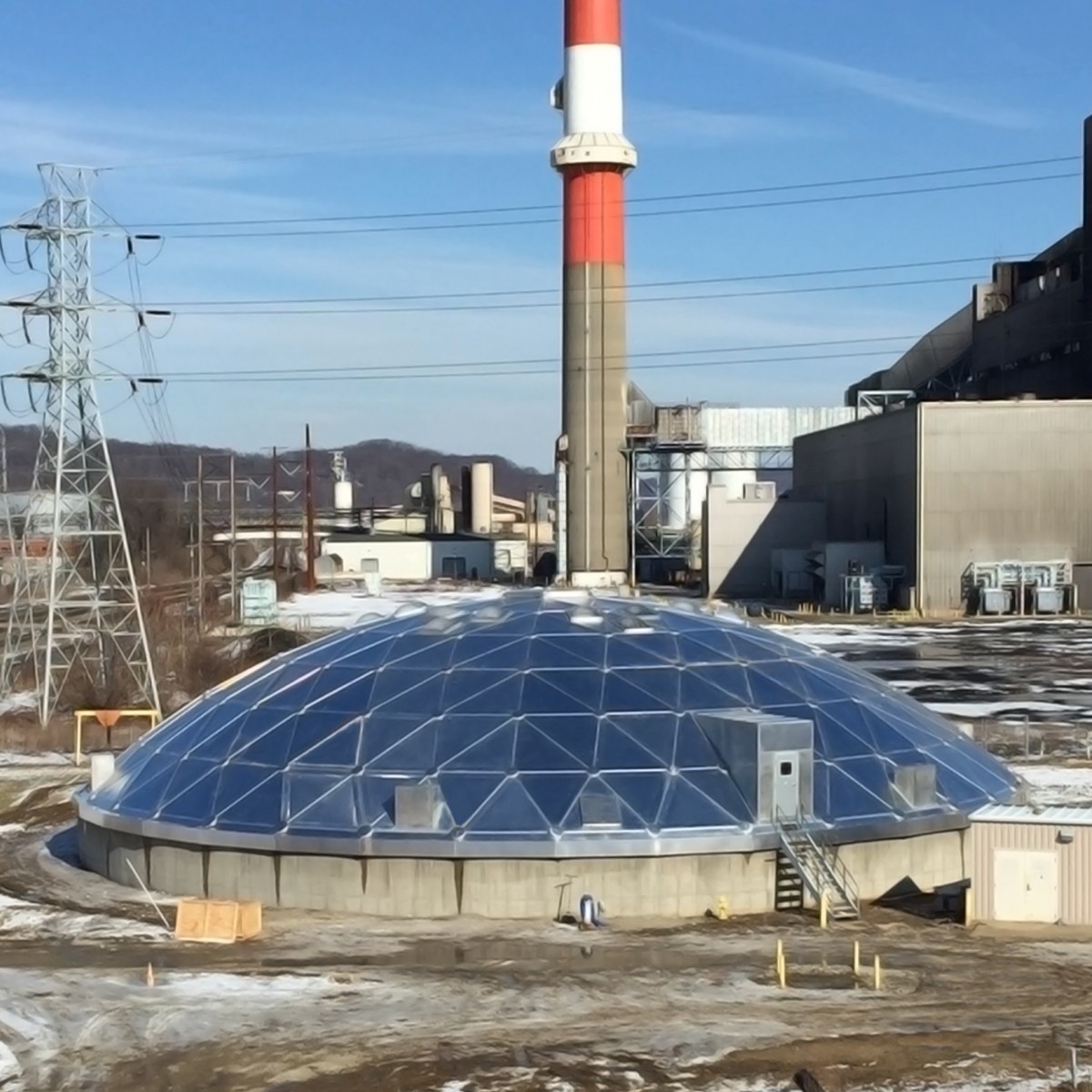

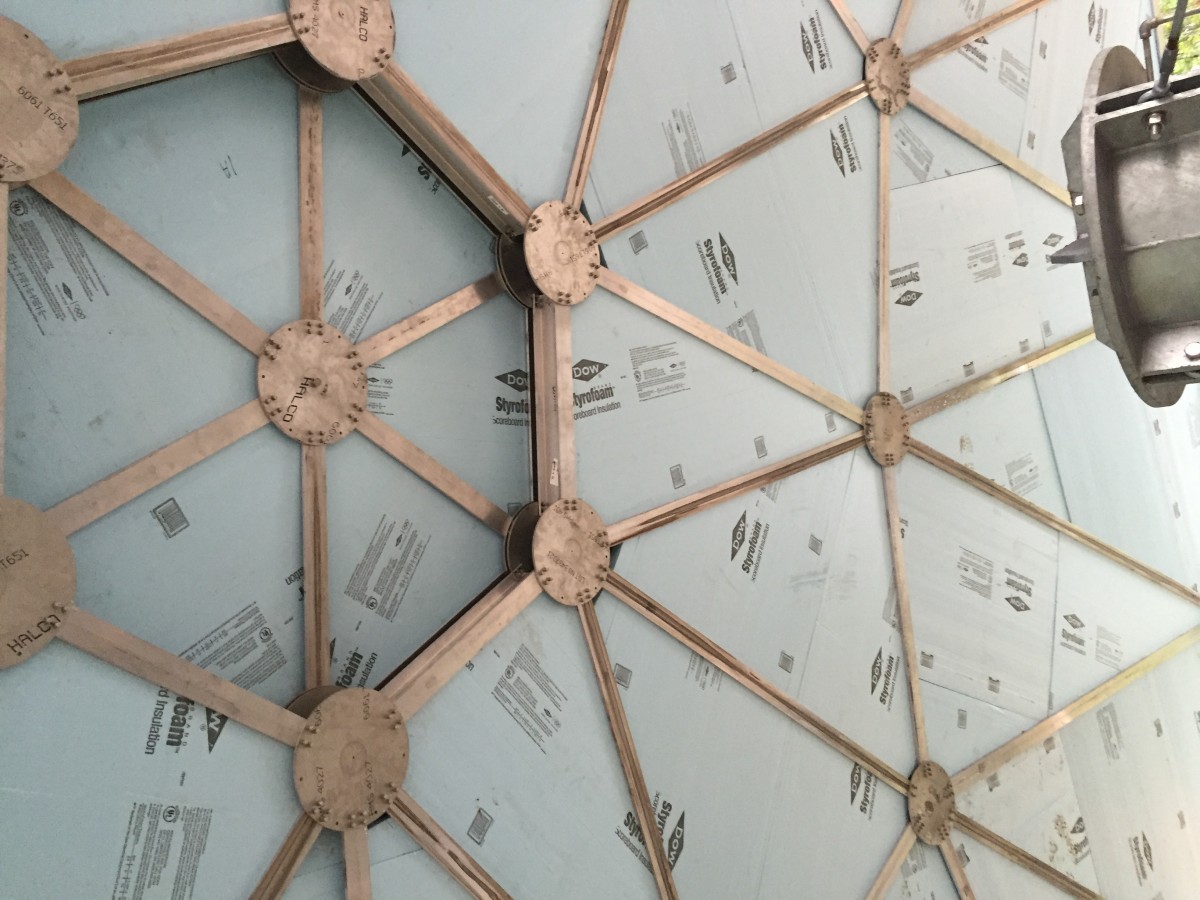

Lucketts, VA

Sand Storage
Aluminum Dome Retrofit on Concrete with Wall Extensions

• Quantity: 1
• Diameter: 49 ft (15 m)
• Height: 8 ft (2.4 m) wall extensions
• Volume:

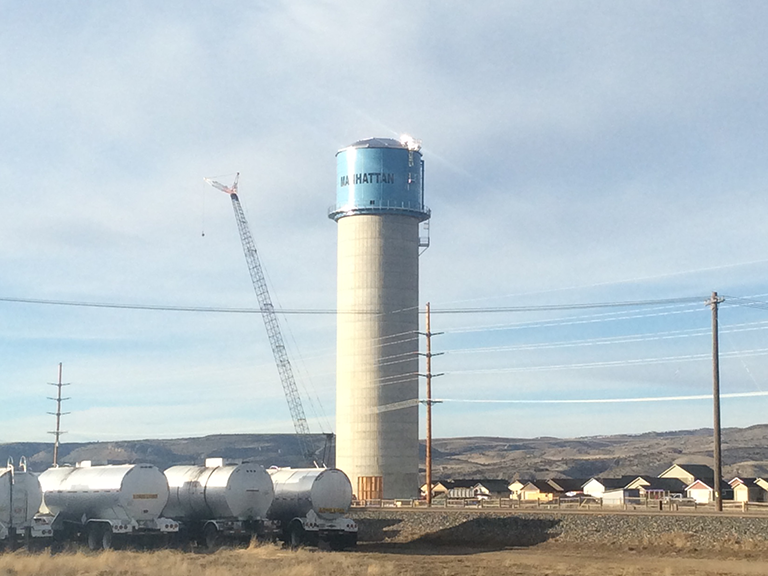

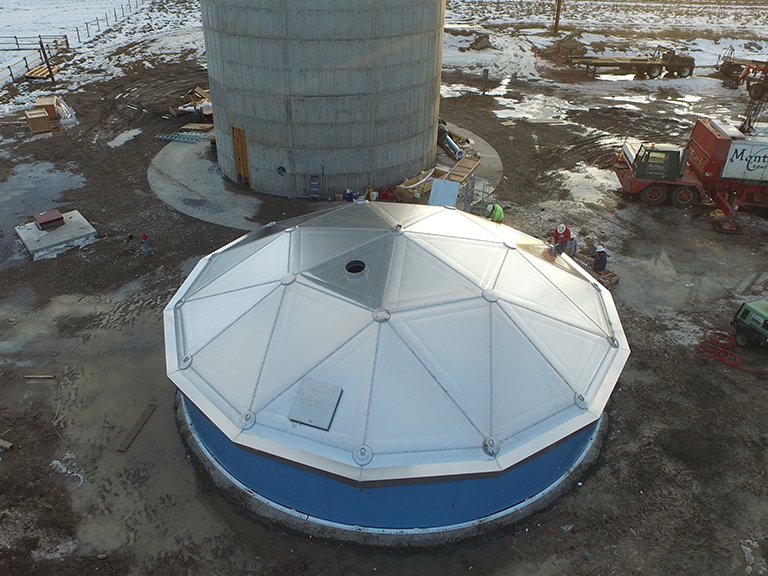

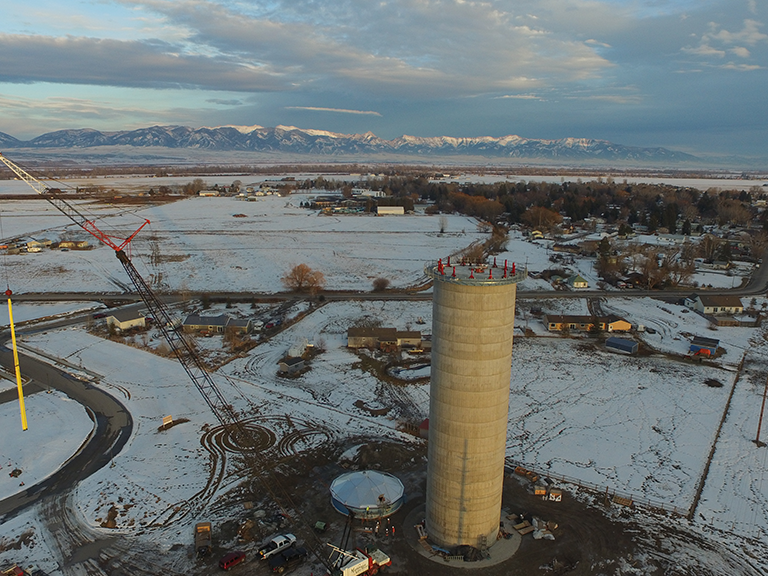

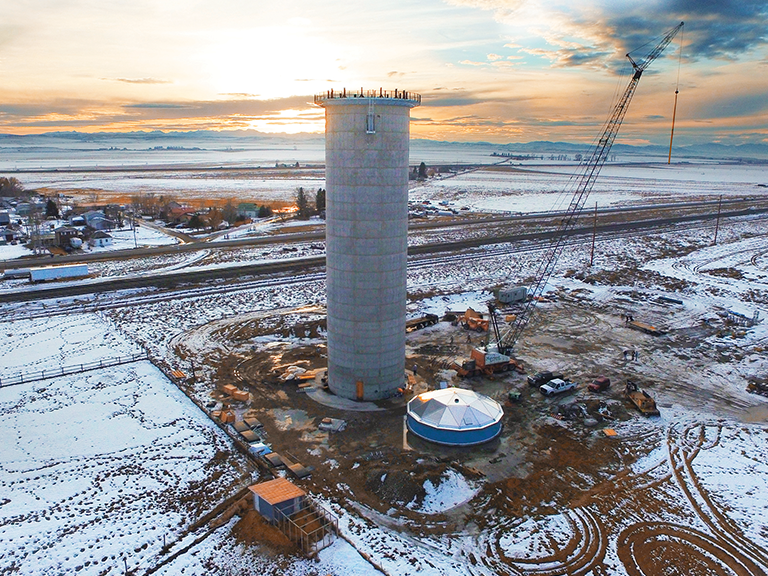

Manhattan, Montana

Municipal Water
Composite Pedestal, Bolted RTP EWT, Aluminum Dome

• Quantity: 1
• Diameter: Tank: 42 ft (12.8 m) • Pedestal: 40 ft (12.19 m)
• Height: Tank: 30 ft (9.1 m) • Pedestal: 140 ft (42.67 m)
• Volume:

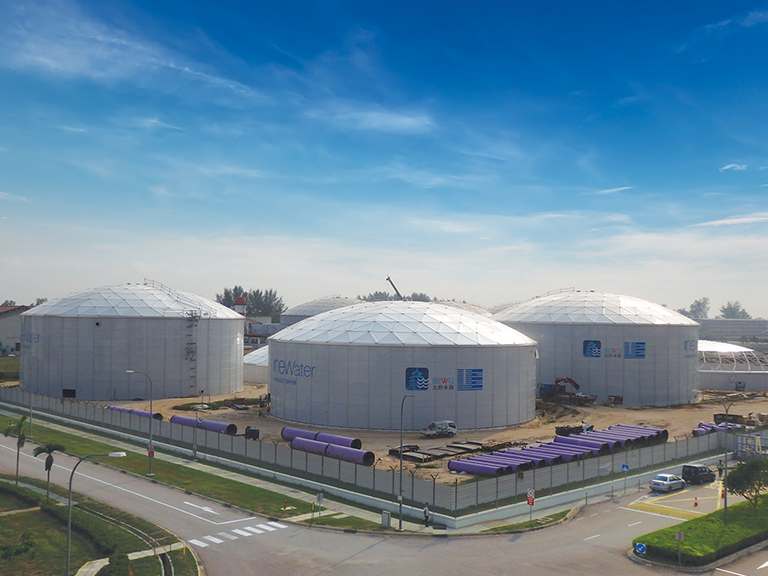

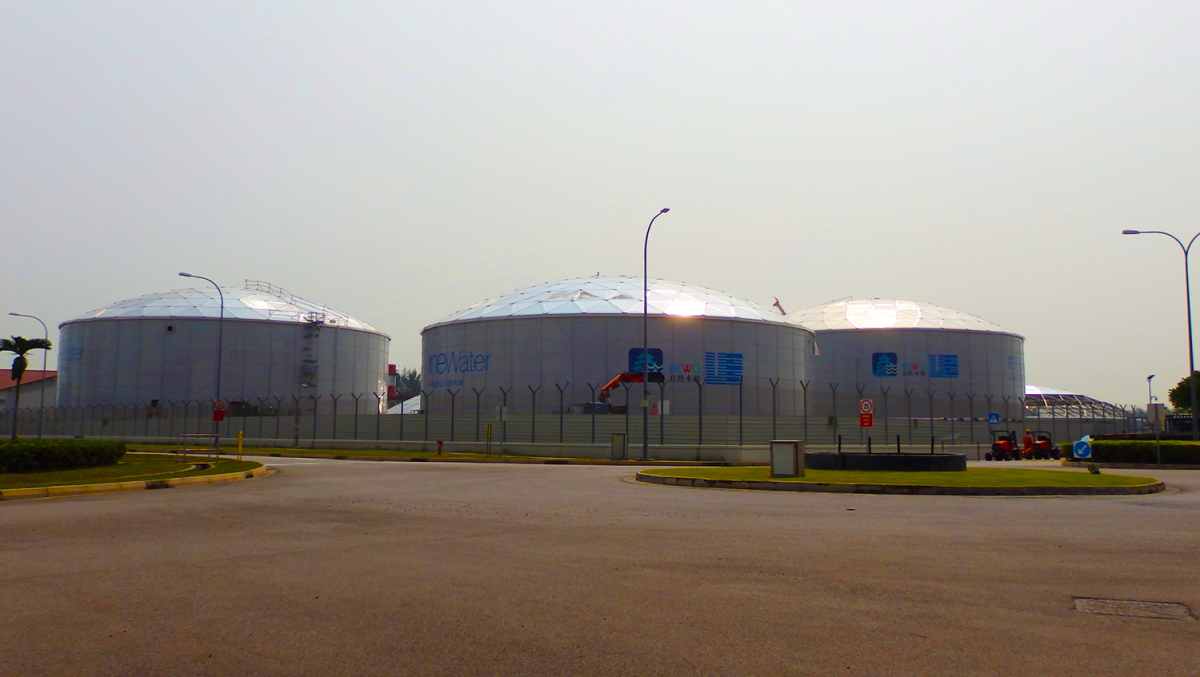

Singapore

Reverse Osmosis Flush/Feed Water Storage
Bolted RTP, Aluminum Geodesic Domes

• Quantity: 5
• Diameter: 135.39 ft (41.27 m)
• Height: 46.08 ft (14.05 m)
• Volume: 4,755,096.9 gal (18,000 cu. m)

• Quantity: 4
• Diameter: 24.62 ft (7.5 m)
• Height: 18.75 ft (5.7 m)
• Volume: 58,117.9 gal (220 cu. m)

• Quantity: 4
• Diameter: 20.8 ft (6.3 m)
• Height: 14.89 ft (4.5 m)
• Volume: 26,417.2 gal (100 cu. m)

View Case Study

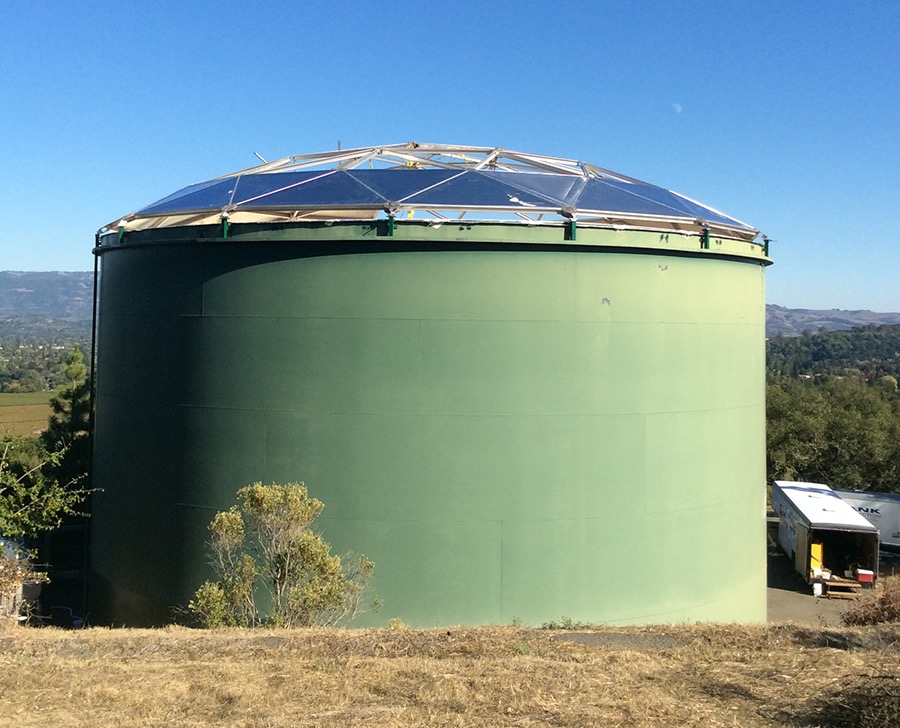

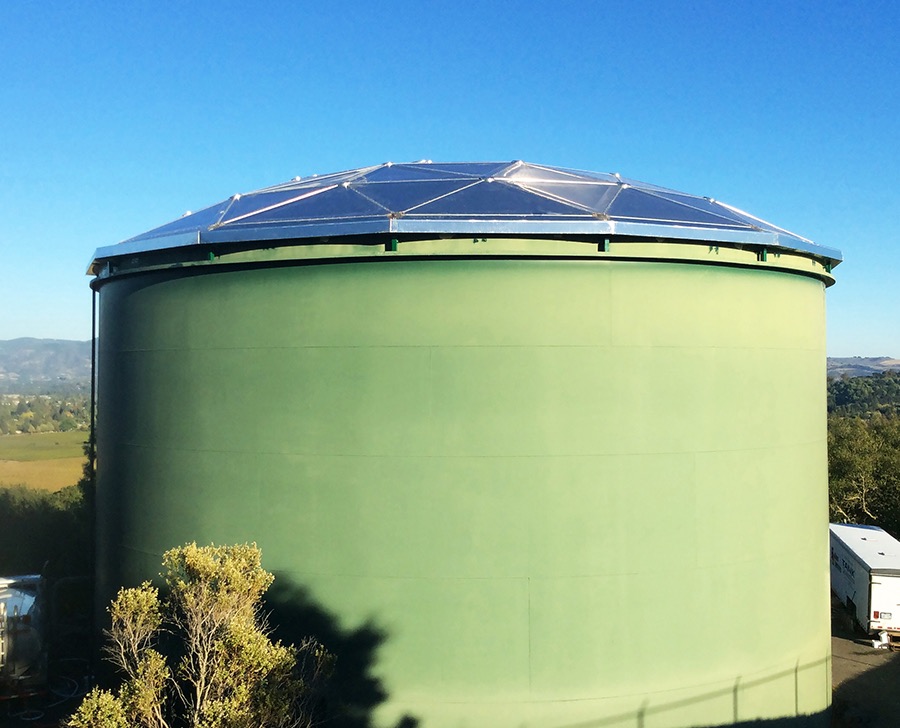

Napa, CA

Potable Water Storage
Aluminum Geodesic Dome

• Quantity: 1
• Diameter: 68.33 ft (20.83 m)
• Height:
• Volume:

Wedron, IL

Wet Sand Storage
Precision Bolted RTP Design

• Quantity: 1
• Diameter: 24.62 ft (7.5 m)
• Height: 81.585 ft (24.87 m)
• Volume: 18,315 cubic feet (1,000 T)

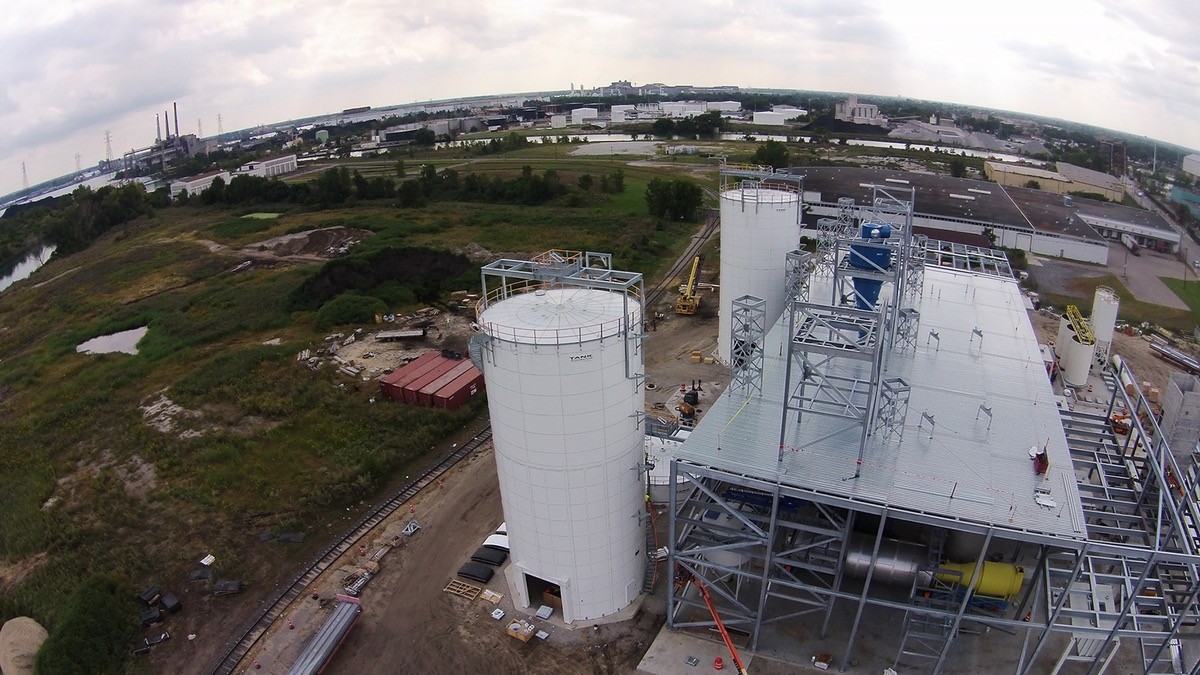

Detroit, MI

Dried Bio-Pellet Storage
Precision Bolted RTP Design, Shop-Weld

• Quantity: 4
• Diameter: 38.62 ft (11.77 m) Bolted
• Height: 80.62 ft (24.57 m) Bolted
• Volume: 49,264 cubic feet Bolted

• Quantity: 4
• Diameter: 14.92 ft (4.55 m) Welded
• Height: 25.67 ft (7.82 m) Welded
• Volume: 2,546 cubic feet Welded

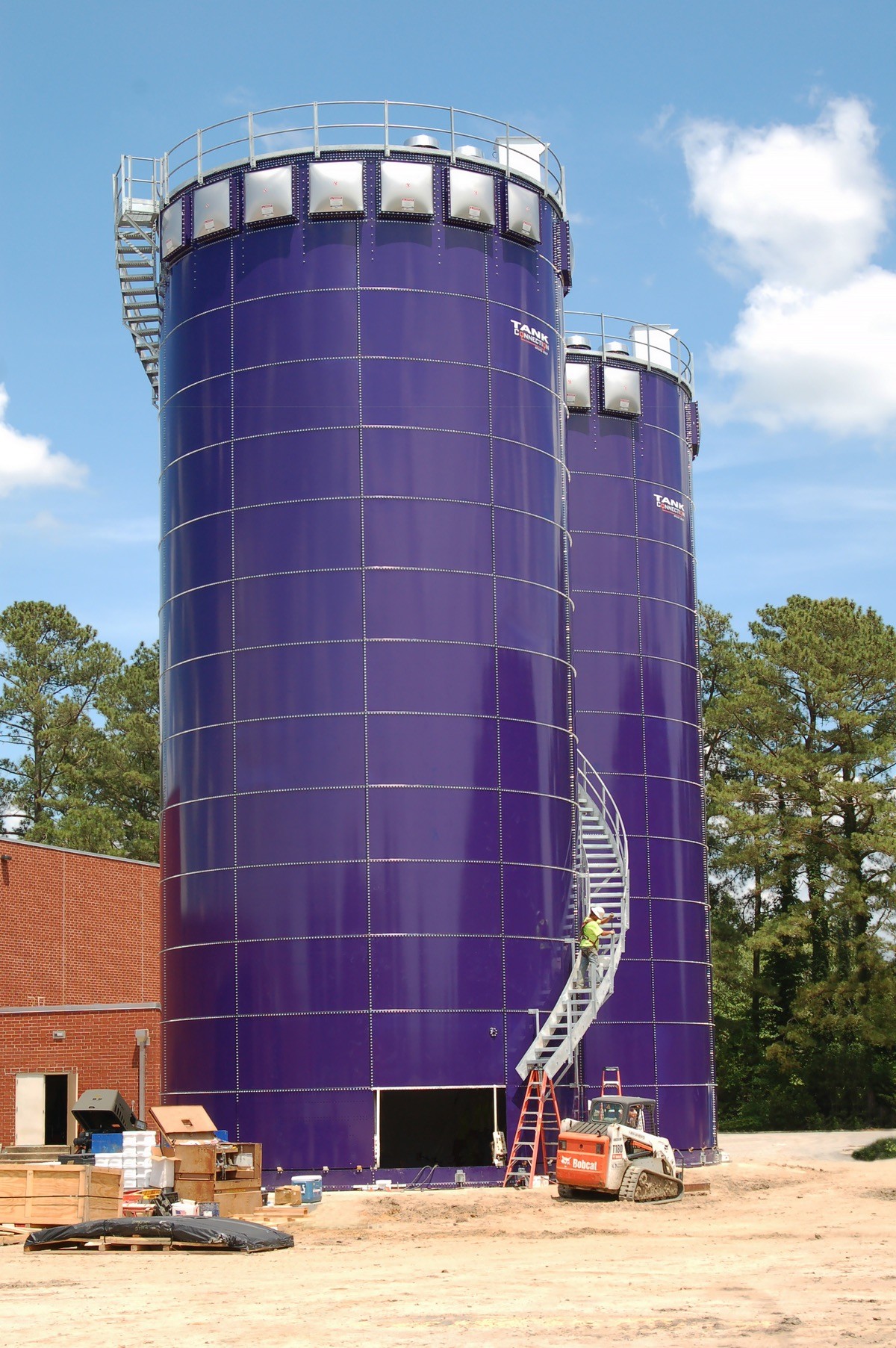

Farmville, NC

Pelletized Sweet Potatoes
Precision Bolted RTP Design

• Quantity:
• Diameter: 29.71 ft (9.06 m)
• Height: 112.52 ft (34.3 m)
• Volume: 44,636 cubic feet (893 based on 40 PCF)

Asbury, MO

Fly Ash
Precision Bolted RTP Design

• Quantity:
• Diameter: 32.68 ft (9.96 m)
• Height: 95.12 ft (28.99 m)
• Volume: 42,500 cubic feet (1,912 T)

Grand Prairie, Alberta, Canada

Frac Sand Storage
Precision Bolted RTP Design

• Quantity: 3
• Diameter: 38.62 ft (11.77 m)
• Height: 65.12 ft (19.85 m)
• Volume: 33,710 cubic feet

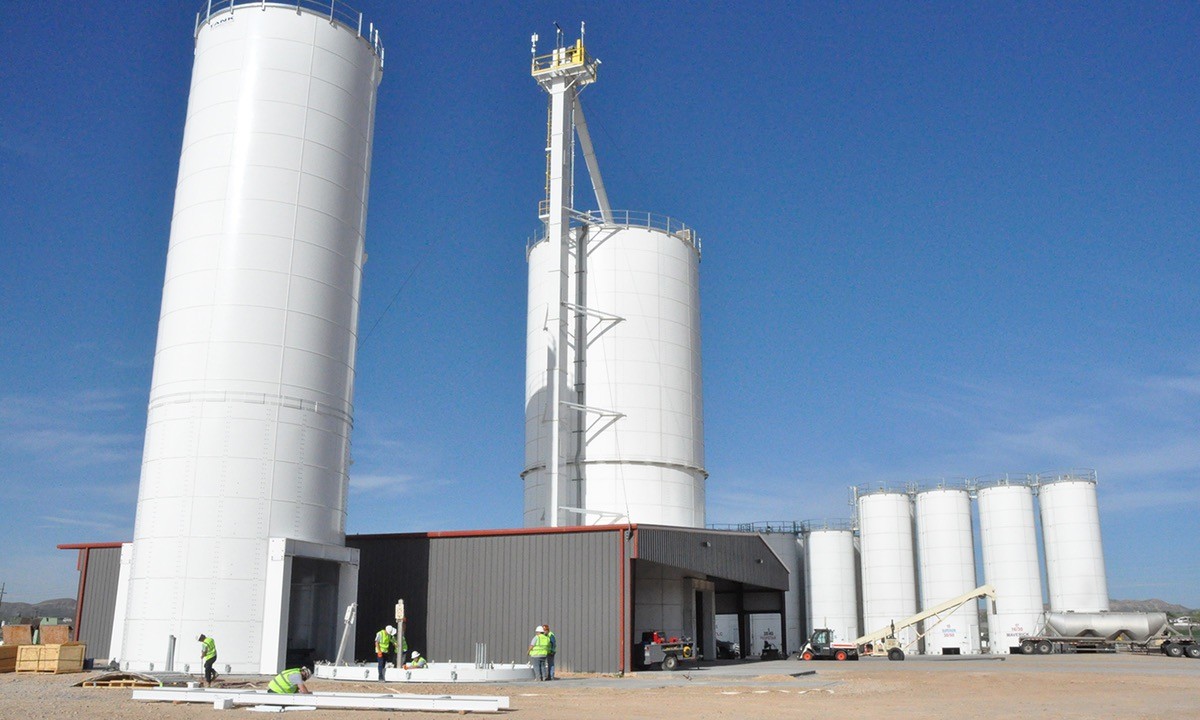

Big Lake, TX

Frac Sand Storage
Precision Bolted RTP Design

• Quantity: 3
• Diameter: 35 ft (10.67 m)
• Height: 128 ft (39.01 m)
• Volume: 87,488 cubic feet

• Quantity: 1
• Diameter: 38 ft (11.58 m)
• Height: 128 ft (39.01 m)
• Volume: 40,000 cubic feet

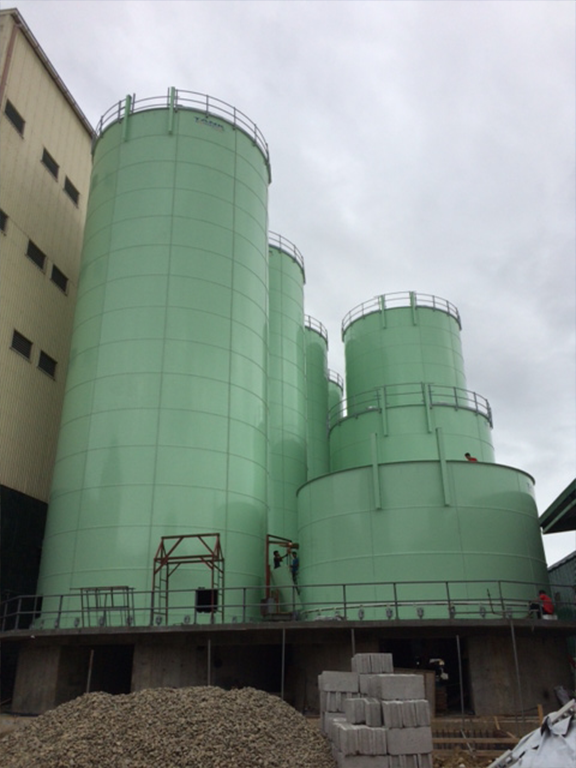

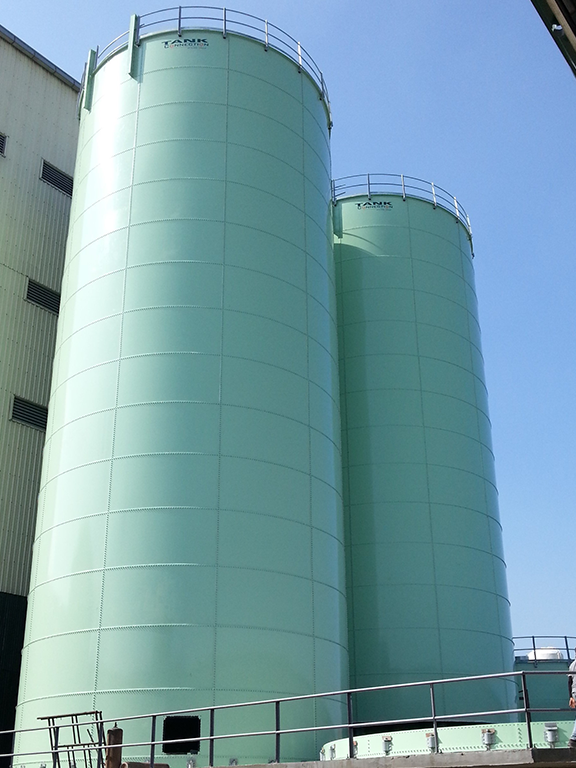

Philippines

Dry Soybean Meal / Rice Bran
Precision Bolted RTP Design

• Quantity: 8
• Diameter: 29.71 ft (9.06 m)
• Height: 73.85 ft (22.5 m)
• Volume: 47,994 cubic feet

Wisconsin

Ash Storage
Precision Bolted RTP Design, Shop-Weld

• Quantity: 1
• Diameter: 33 ft (10.06 m)
• Height: 93 ft (28.35 m)
• Volume: 29,807 cubic feet

• Quantity: 1
• Diameter: 14 ft (4.27 m)
• Height: 93 ft (28.35 m)
• Volume: 7,460 cubic feet

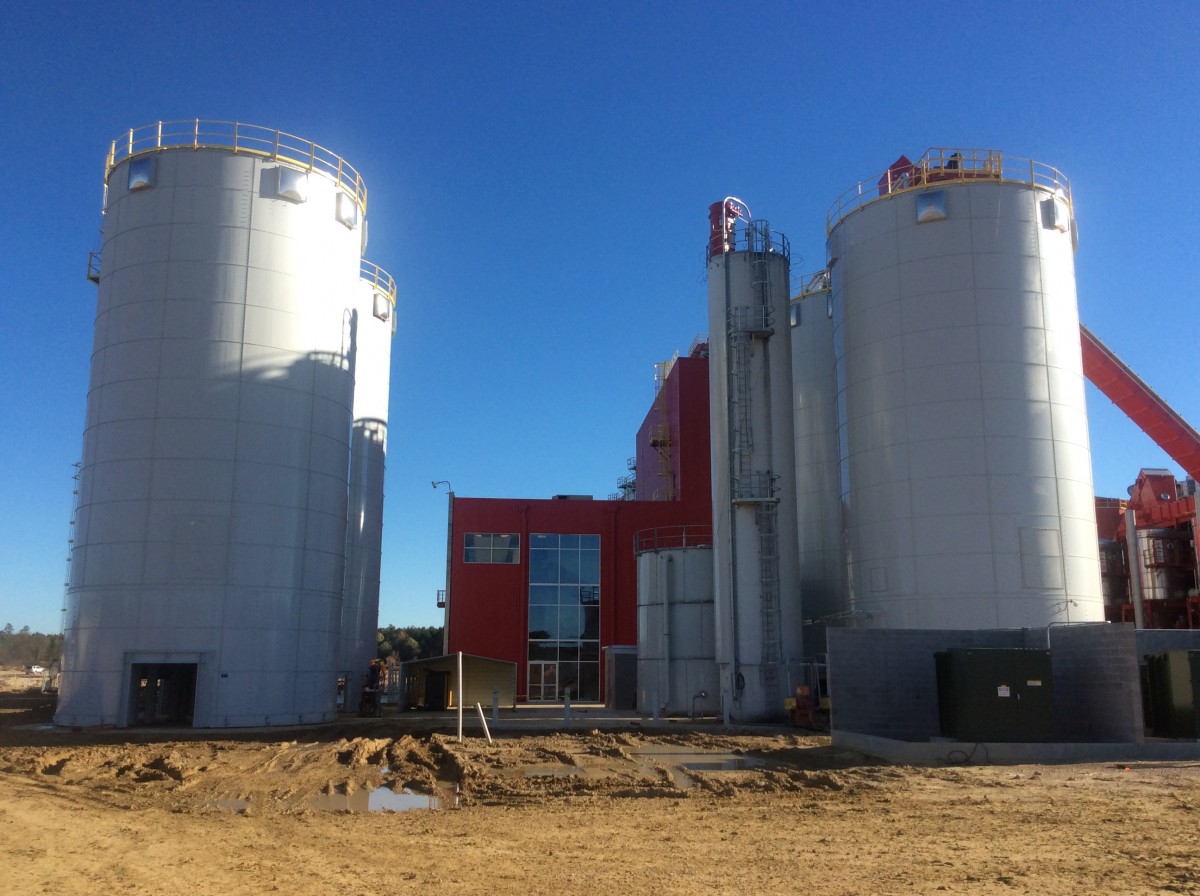

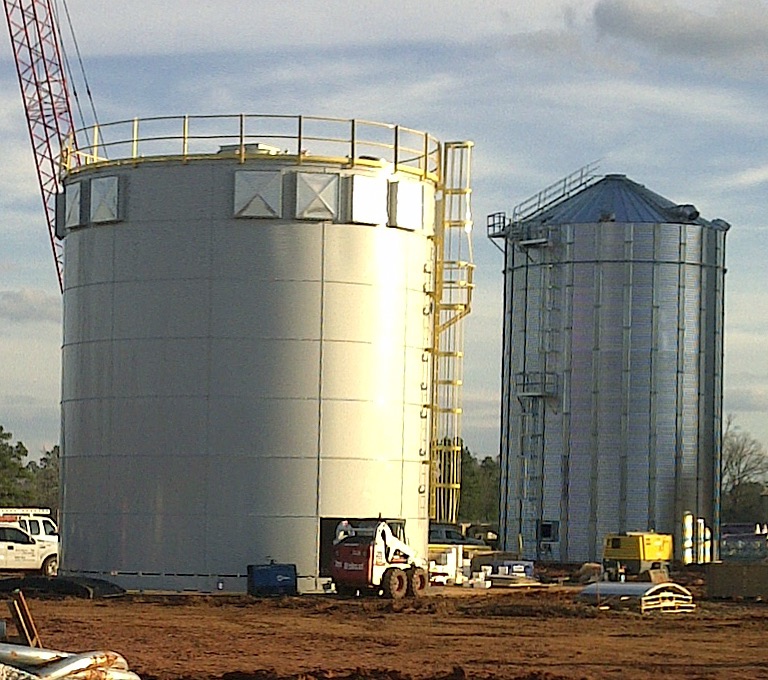

Woodville, TX

Wood Pellets
Hybrid Design

• Quantity: 2
• Diameter: 32.68 ft (9.96 m)
• Height: 69.02 ft (18.29 m)
• Volume: 40,000 cubic feet

Pekin, IL

Trona
Shop-Welded

• Quantity: 3
• Diameter: 14 ft (4.27 m)
• Height: 142 ft (43.28 m)
• Volume: 16,580 cubic feet

Illinois

Animal Meal
Shop-Welded Silo

• Quantity: 10
• Diameter: 11.92 ft (3.6 m)
• Height: 56.73 ft (17.3 m)
• Volume: 4,650 cubic feet

Fort Smith, AR

Dry Bulk, Bauxite, Nepheline Syenite
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 38.62 ft (11.77 m)
• Height: 136.6 ft (41.64 m)
• Volume: 104,964 cubic feet

• Quantity: 1
• Diameter: 18.46 ft (5.63 m)
• Height: 35.17 ft (10.72 m)
• Volume: 3,375 cubic feet

Pond Creek, OK

Frac Sand Storage
Precision Bolted RTP Design

• Quantity: 4
• Diameter: 35.65 ft (10.87 m)
• Height: 94.15 ft (28.7 m)
• Volume: 56,037 cubic feet

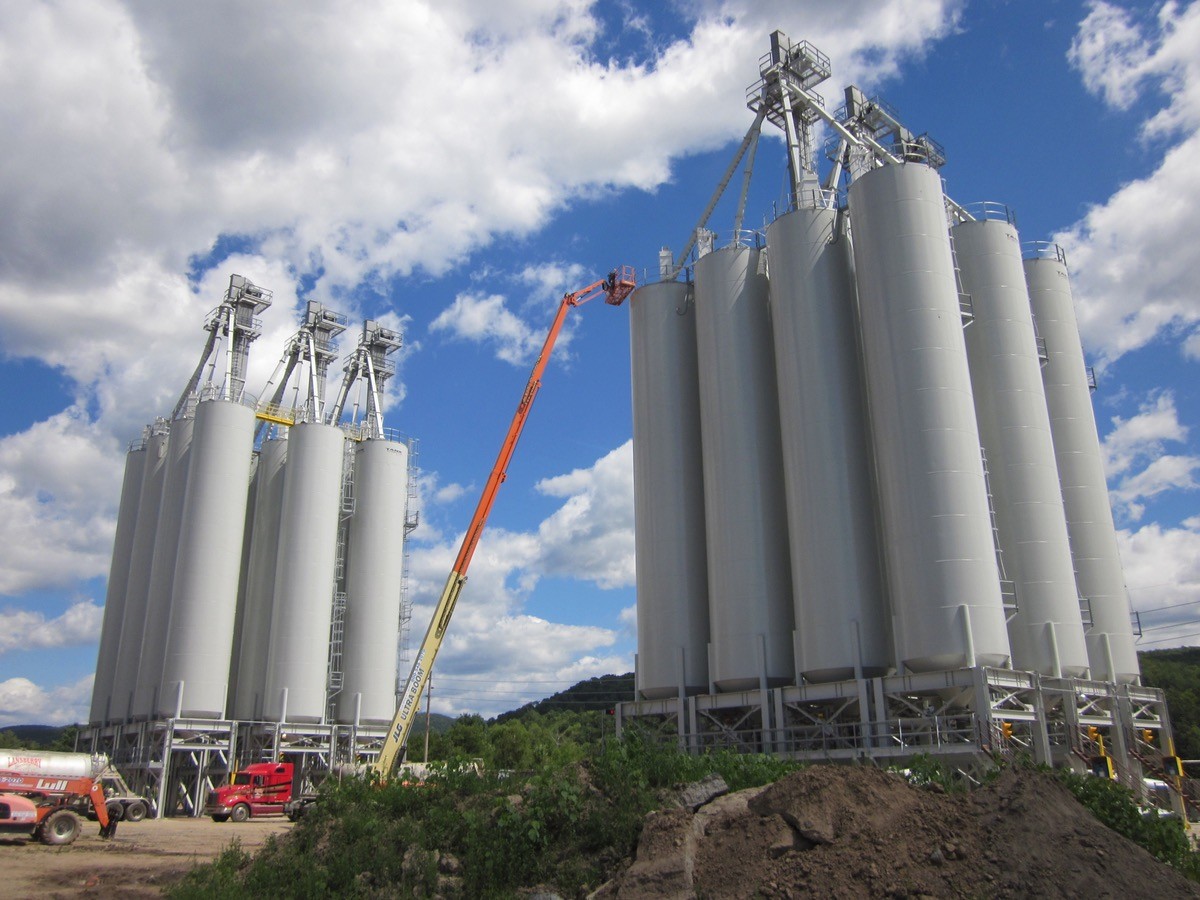

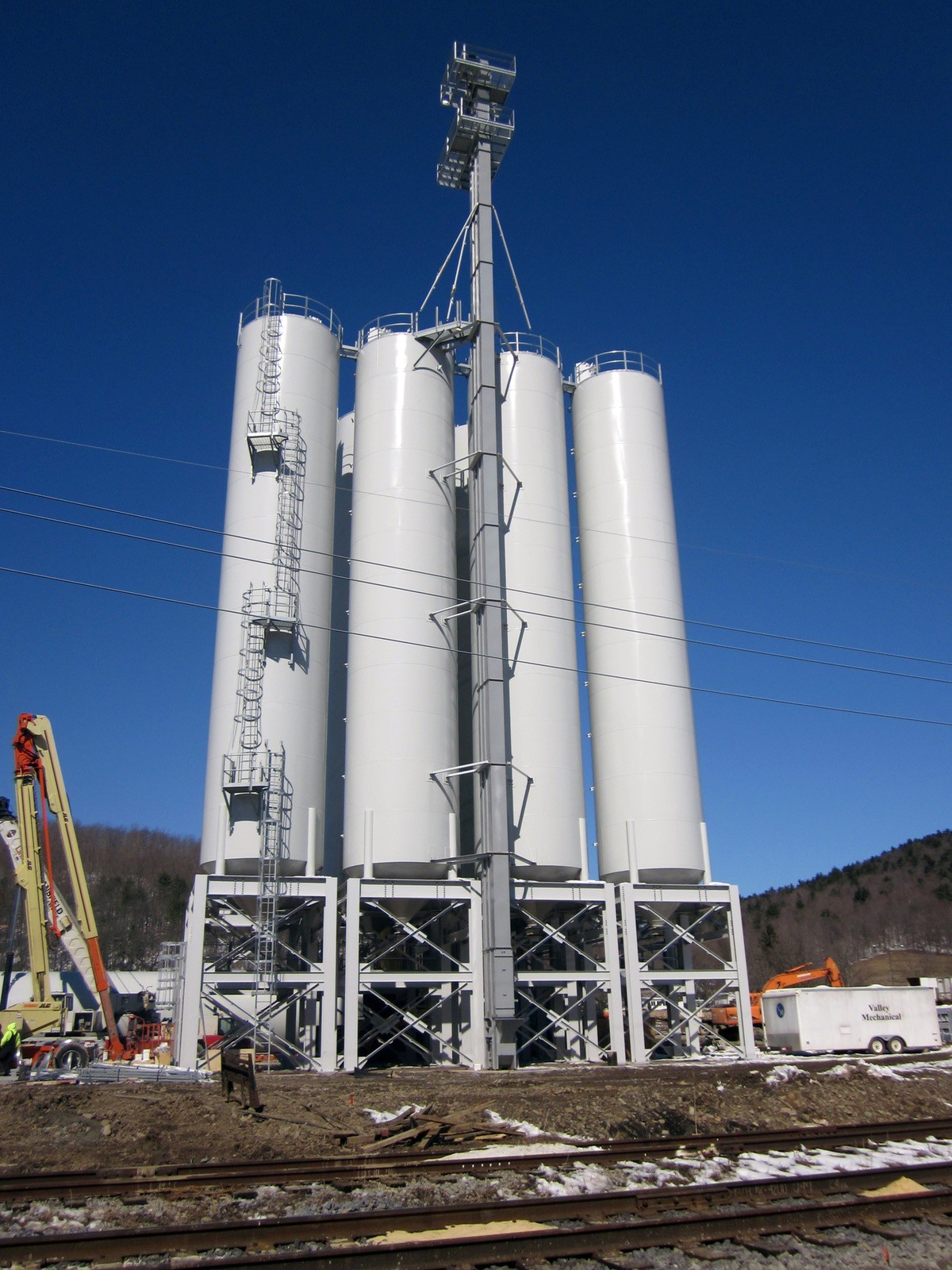

Wellsboro, PA

Frac Sand Storage
Shop-Welded

• Quantity: 24
• Diameter: 13.92 ft (4.24 m)
• Height: 93 ft (28.34 m)
• Volume: 10,783 cubic feet

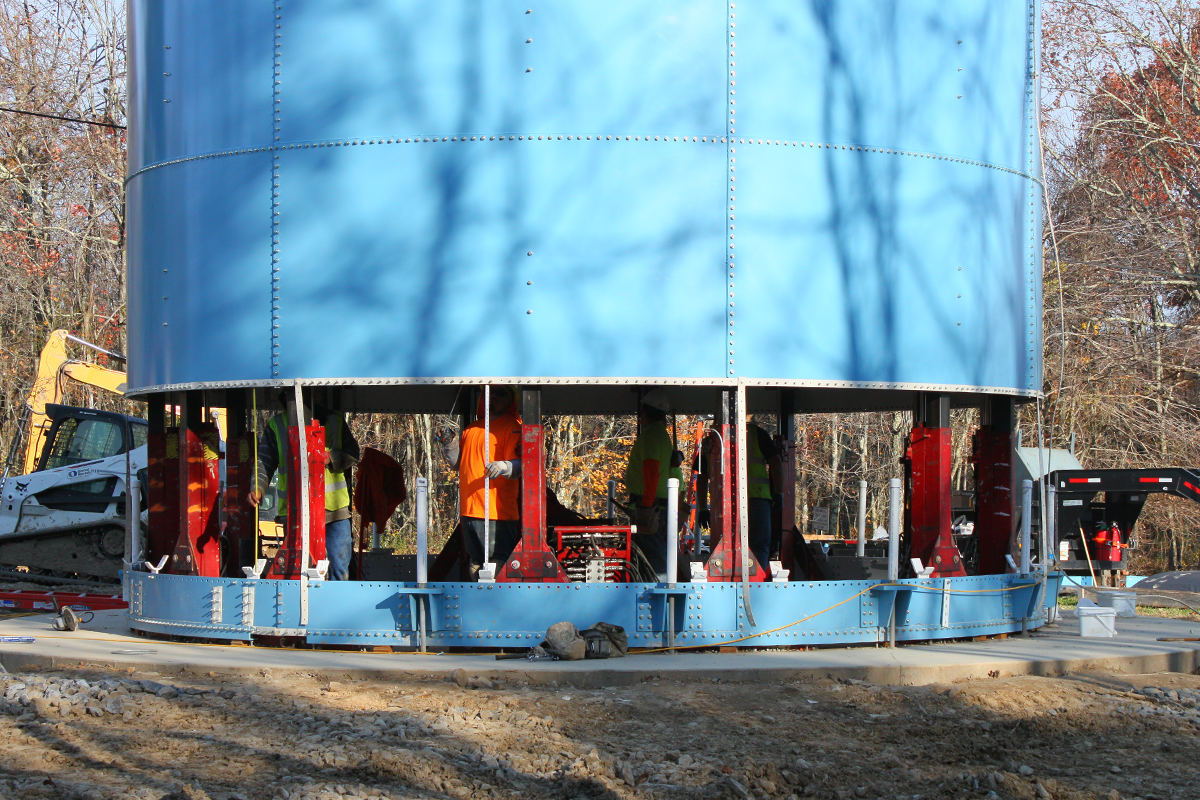

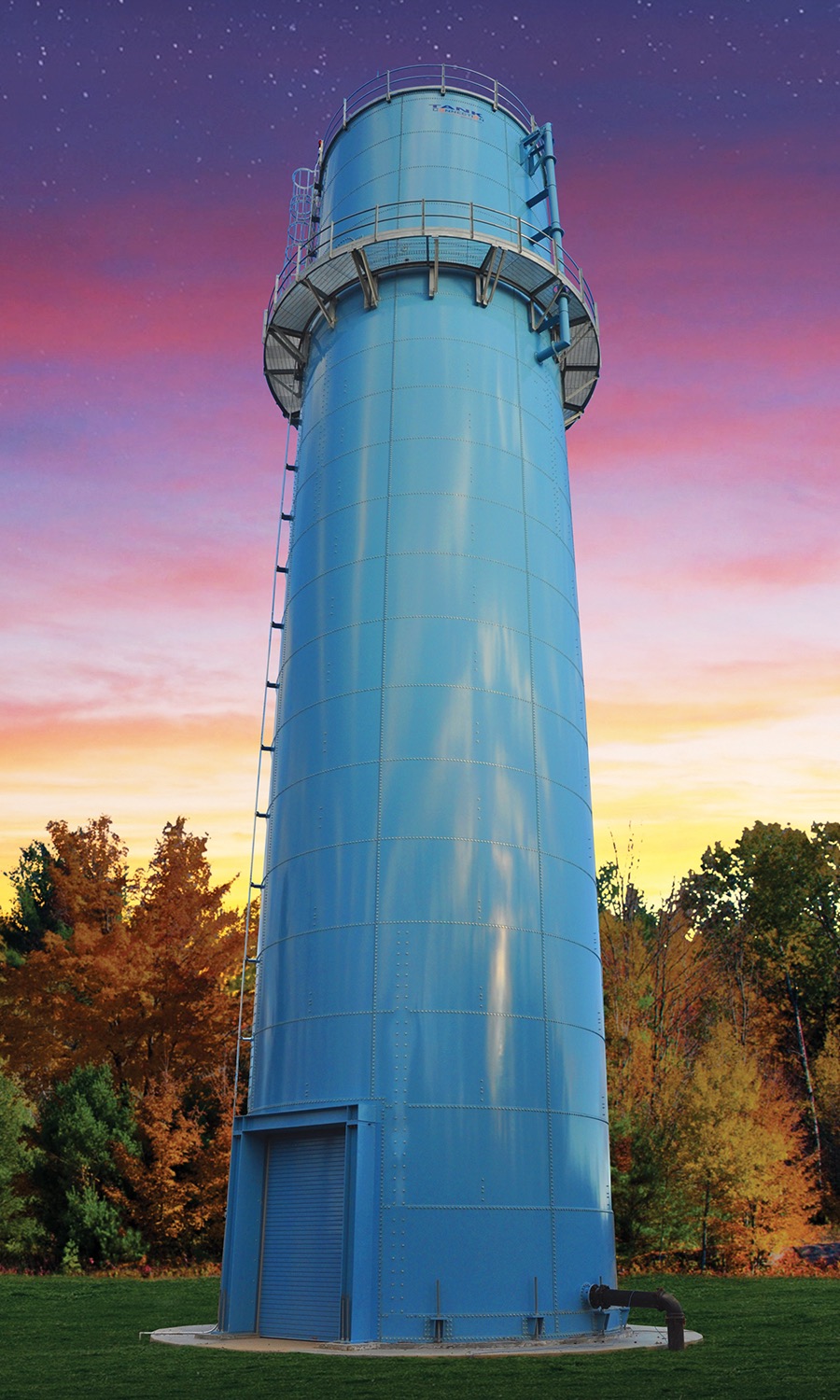

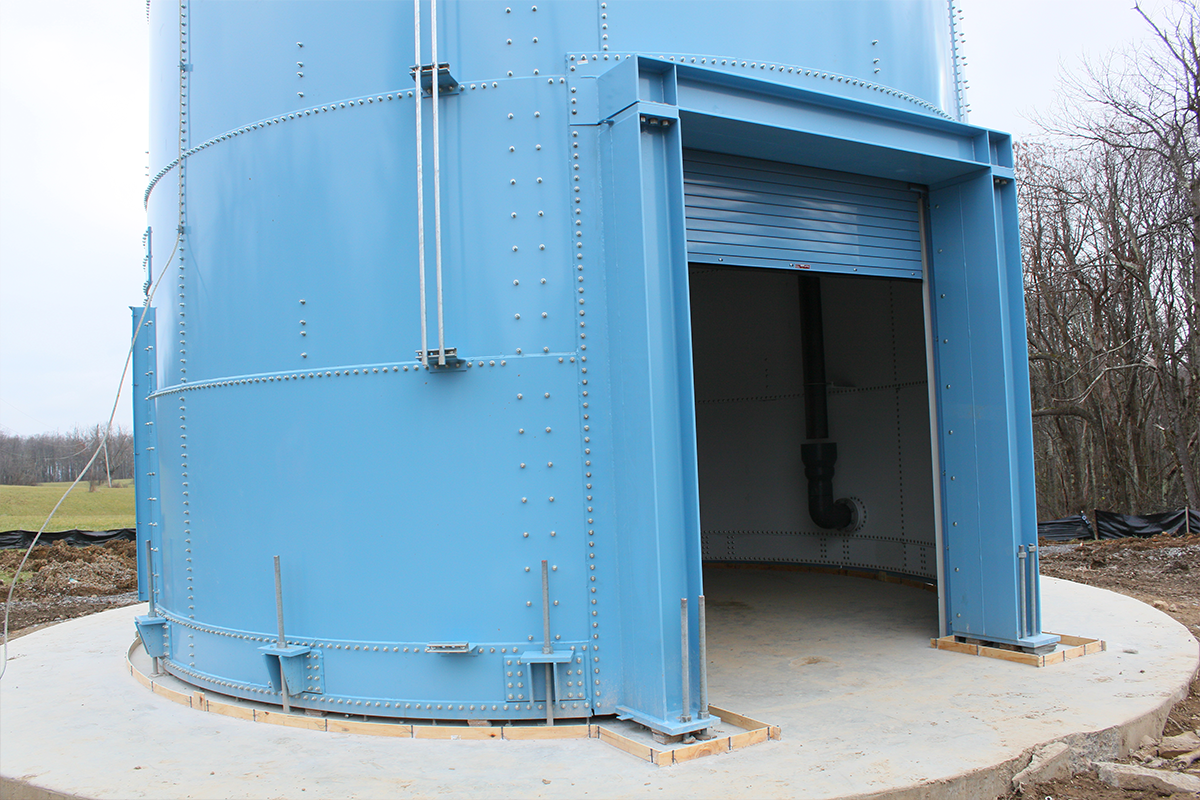

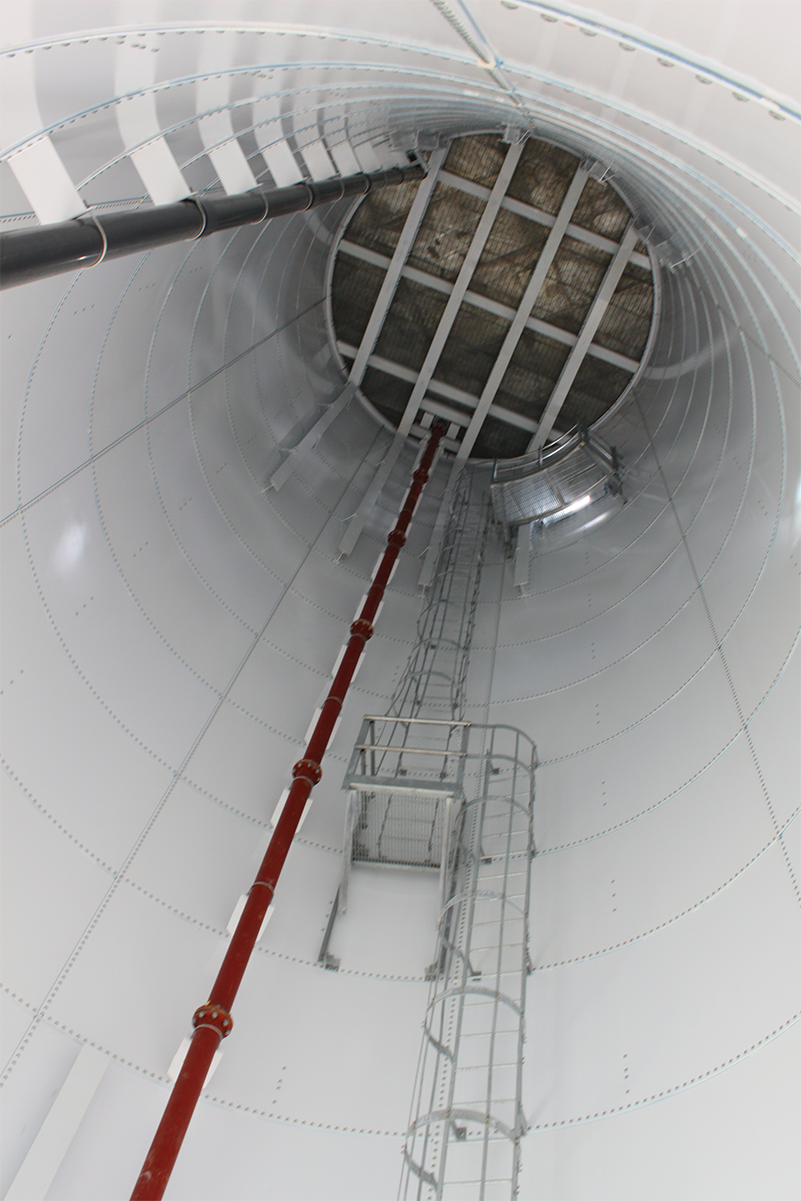

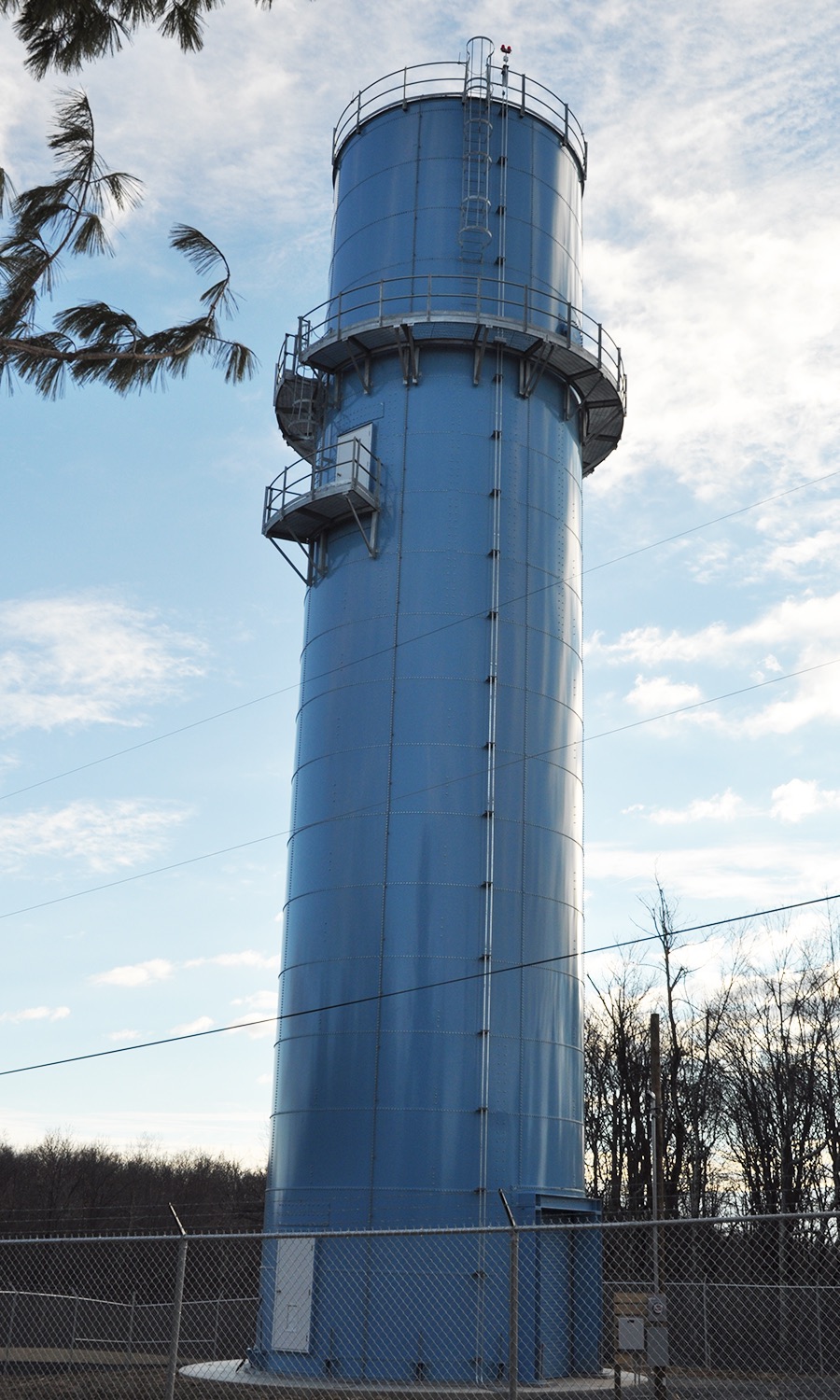

McComas, WV

Potable Water Storage
Elevated Water Tank - Poster Series

• Quantity: 1
• Diameter: 21.54 ft (6.57 m)
• Height: 95 ft (28.96 m)
• Volume: 56,000 gal (211.98 cu. m,)

Maysville, KY

Bed Ash
Bolted RTP, Hybrid

• Quantity: 2
• Diameter: 43.08 ft (13.13 m)
• Height: 83.45 ft (25.44 m)
• Volume: 35,379 cubic feet

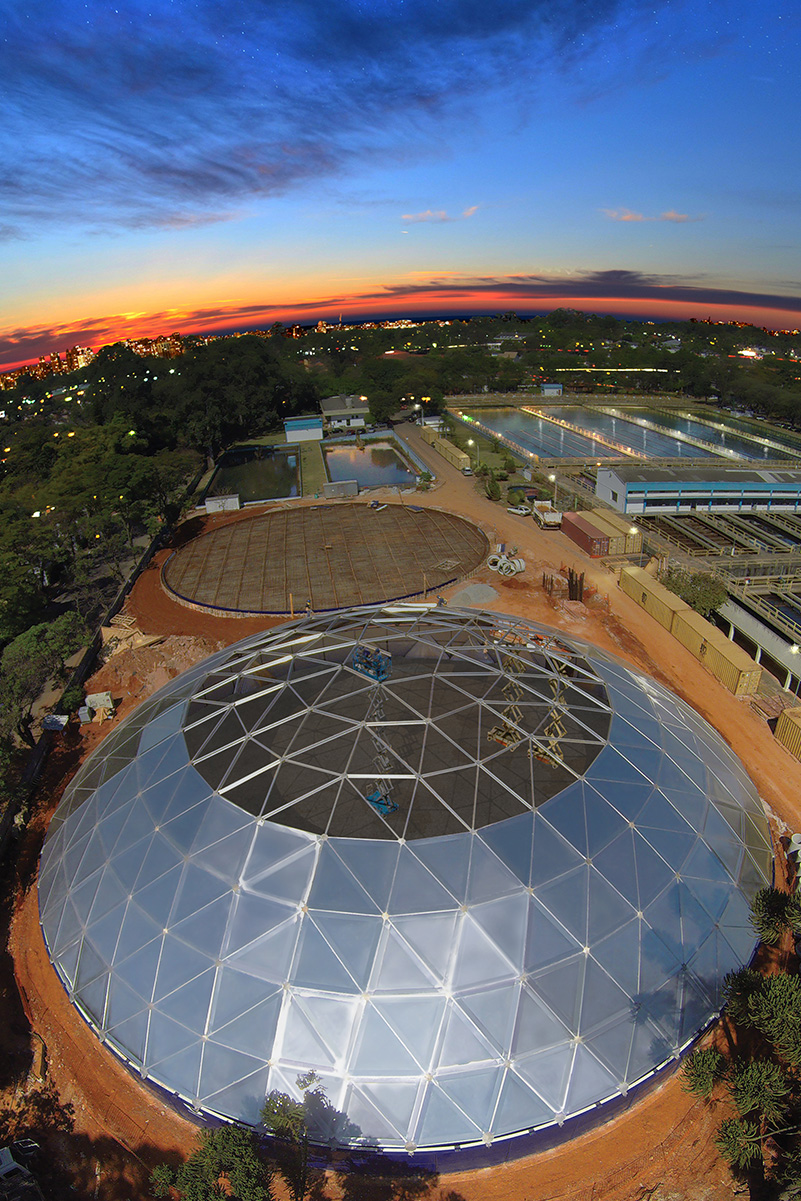

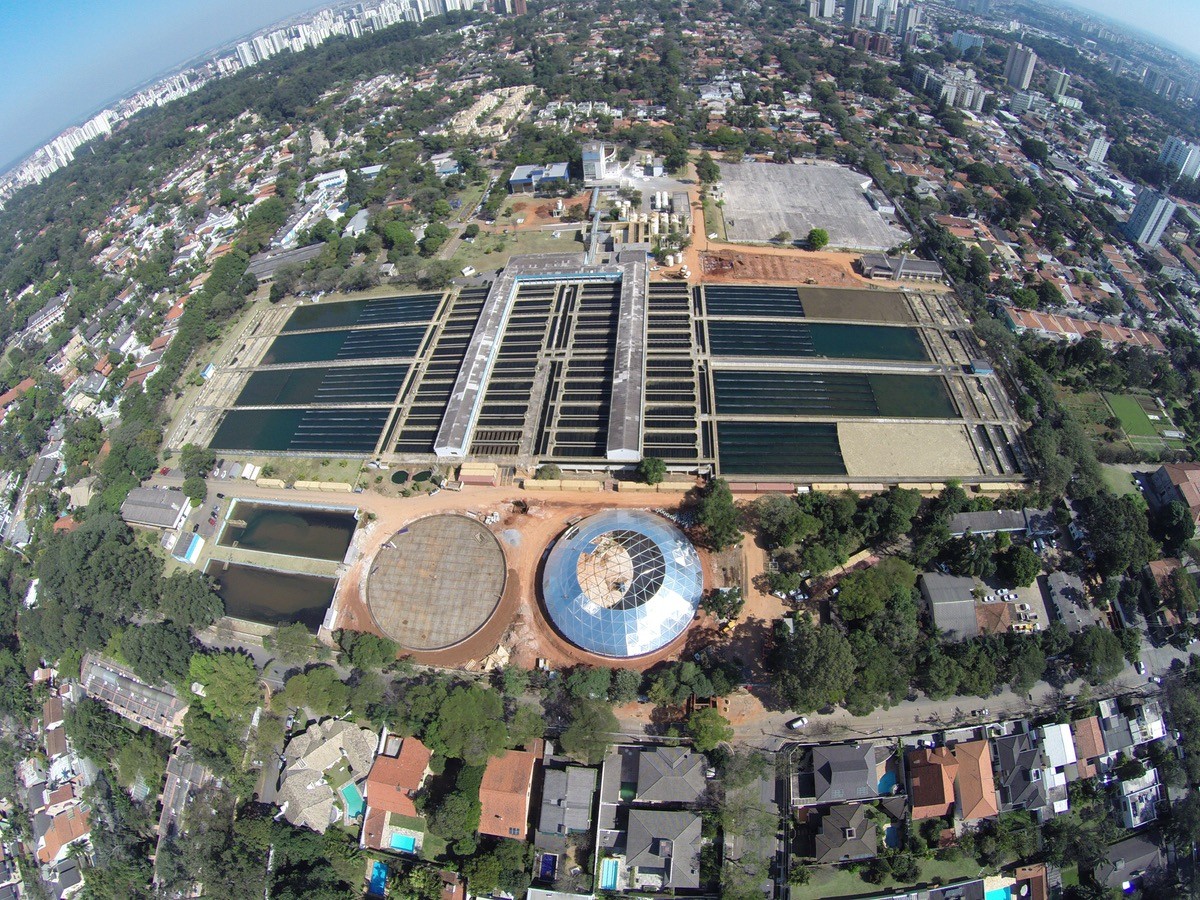

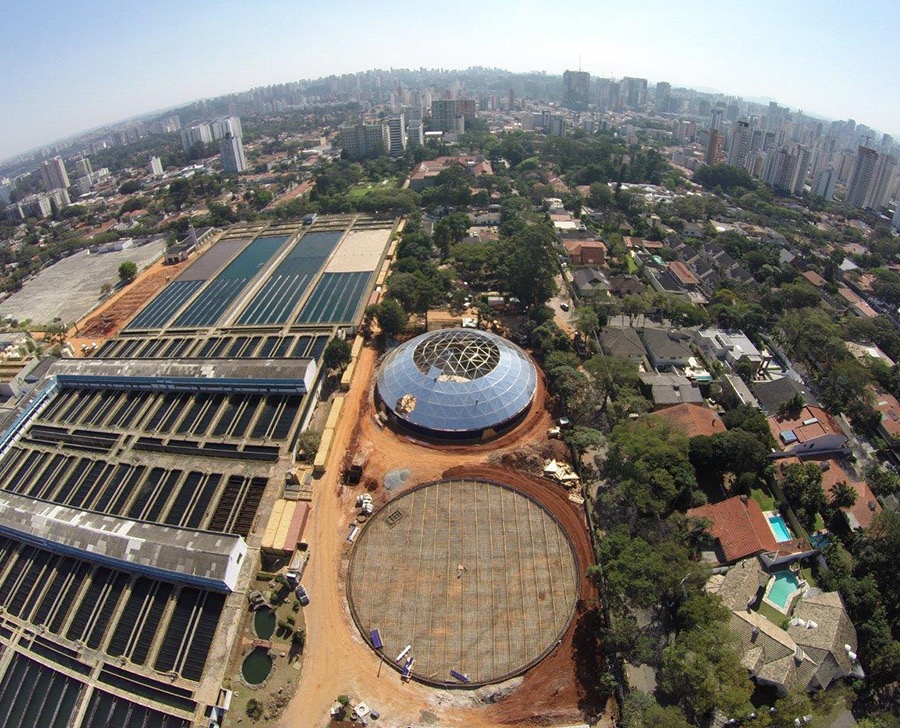

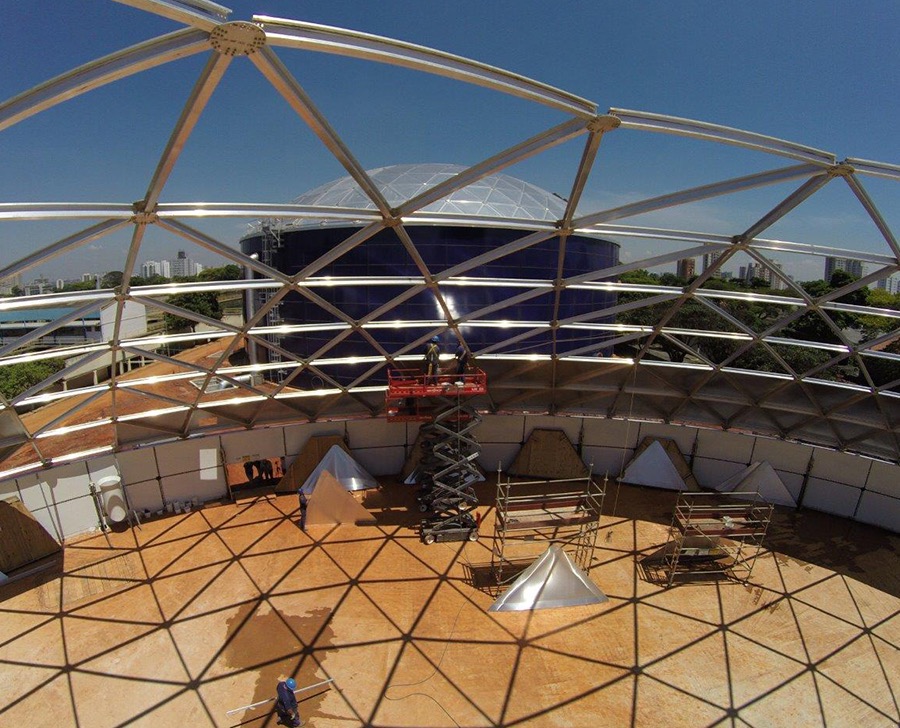

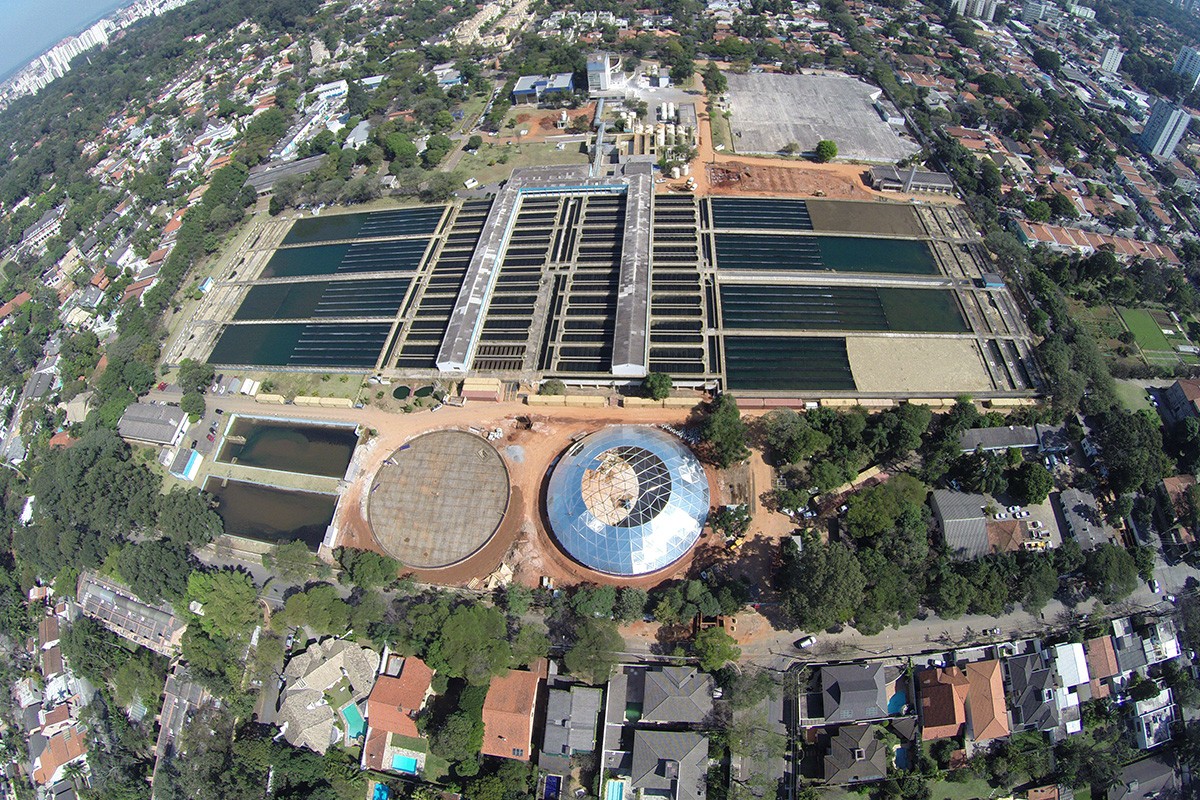

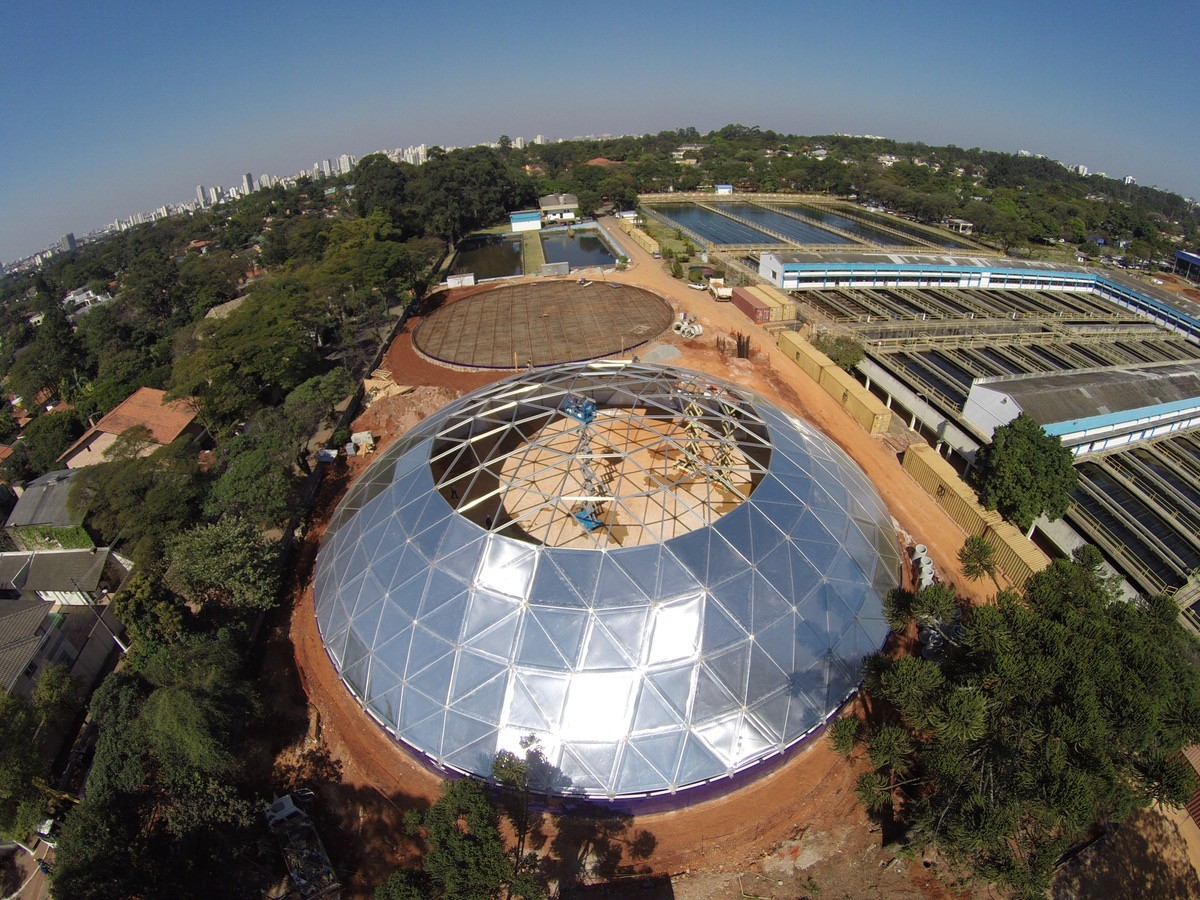

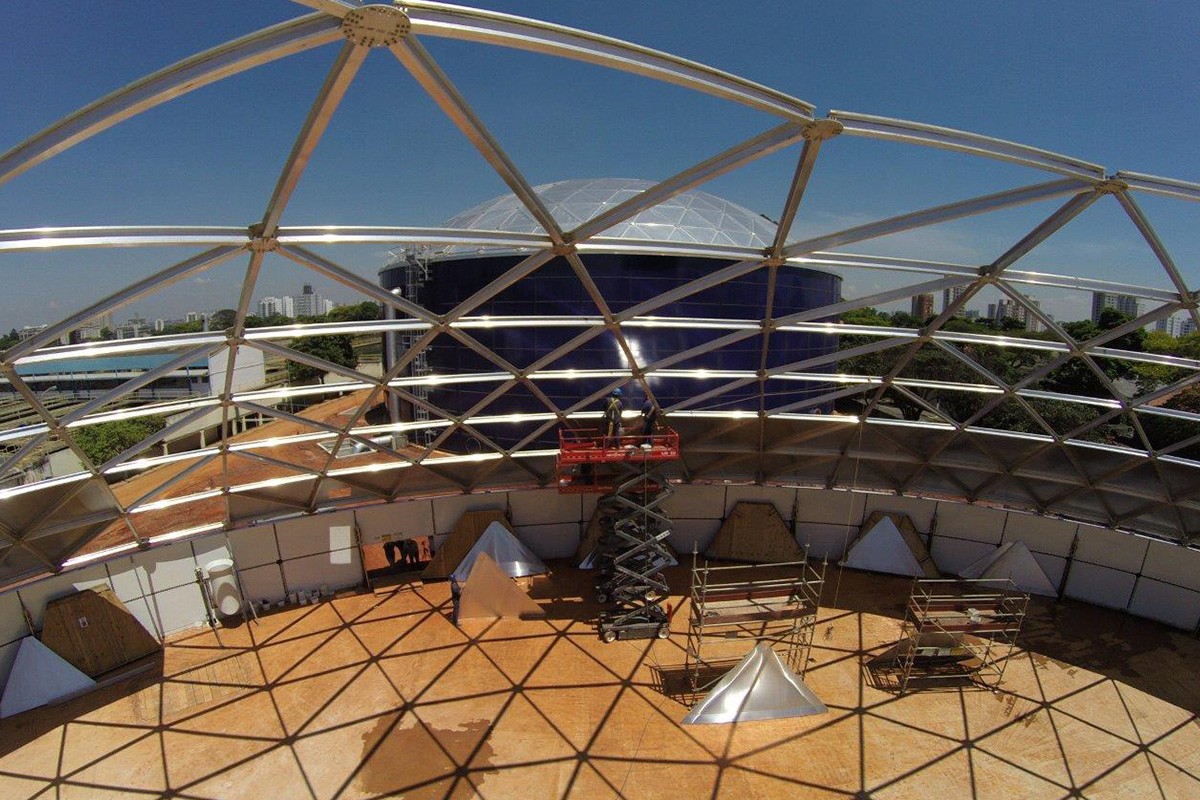

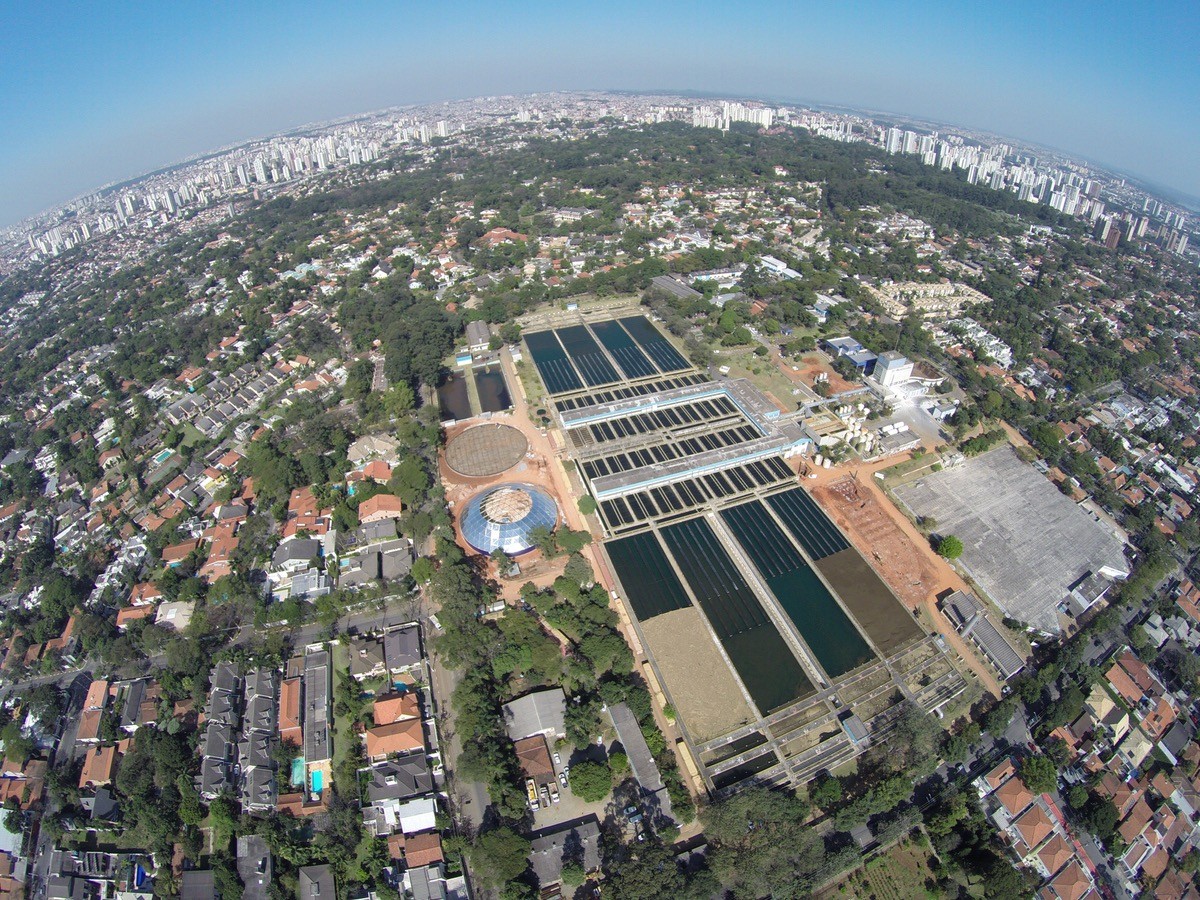

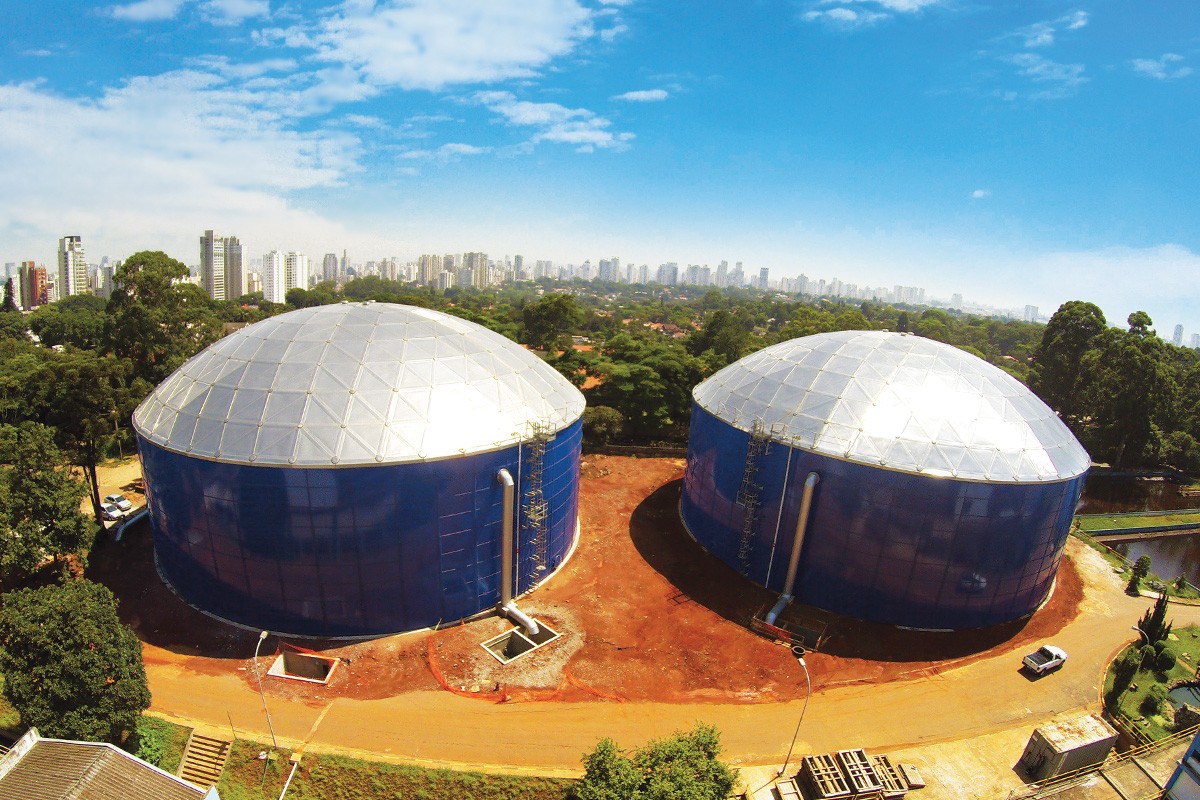

São Paulo, Brazil

Potable Water Storage
Bolted RTP Design, Aluminum Geodesic Dome

• Quantity: 2
• Diameter: 147.7 ft (45.02 m)
• Height: 44.21 ft (13.47 m)
• Volume: 5,303,353 gal (20,075 cu. m)

Coleman, OK

Sand Terminal
Bolted RTP Design, Shop-Weld

• Quantity: 2
• Diameter: 27 ft (8.23 m) (bolted RTP)
• Height: 61 ft (18.59 m) (bolted RTP)
• Volume: 22,660 cubic feet (bolted RTP)

• Quantity: 2
• Diameter: 14 ft (4.27 m) (shop-weld)
• Height: 62 ft (18.9 m) (shop-weld)
• Volume: 6,725 cubic feet (shop-weld)

• Quantity: 3
• Diameter: 12 ft (3.66 m) (shop-weld)
• Height: 38 ft (11.58 m) (shop-weld)
• Volume: 1,355 cubic feet (shop-weld)

Red River Parrish, LA

Free-flowing Ash
Bolted RTP, Shop-Weld

• Quantity: 8
• Diameter: 18.46 ft (bolted)
• Height: 46.4 ft (bolted)
• Volume: 13,651 cubic feet (bolted)

• Quantity: 4
• Diameter: 13.92 ft (shop-weld)
• Height: 68.5 ft (shop-weld)
• Volume: 6,951 cubic feet (shop-weld)

• Quantity: 2
• Diameter: 21.54 ft (bolted)
• Height: 79.18 ft (bolted)
• Volume: 17,511 cubic feet (bolted)

• Quantity: 1
• Diameter: 18.46 ft (bolted)
• Height: 46.4 ft (bolted)
• Volume: 13,651 cubic feet (bolted)

Cleburne, TX

Frac Sand Storage
Precision Bolted RTP Design

• Quantity: 4
• Diameter: 26 ft (7.92 m)
• Height: 80 ft (24.38 m)
• Volume: 30,000 cubic feet

Mexicali, Mexico

Rice and Wheat Bran
Shop-Welded

• Quantity: 4
• Diameter: 14 ft (4.27 m)
• Height: 87 ft (26.52 m)
• Volume: 10,000 cubic feet

• Quantity: 4
• Diameter: 12 ft (3.66 m)
• Height: 65 ft (19.81 m)
• Volume: 5,000 cubic feet

View Case Study

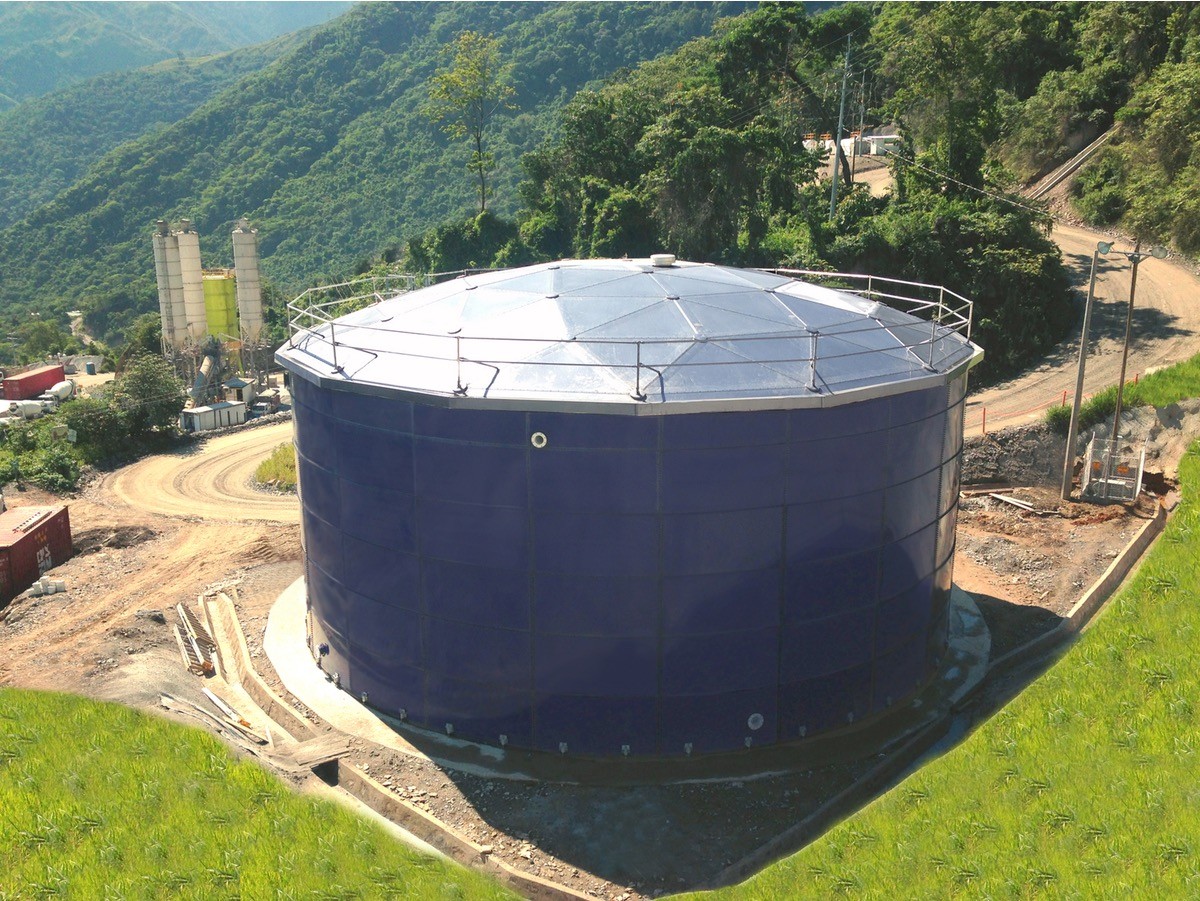

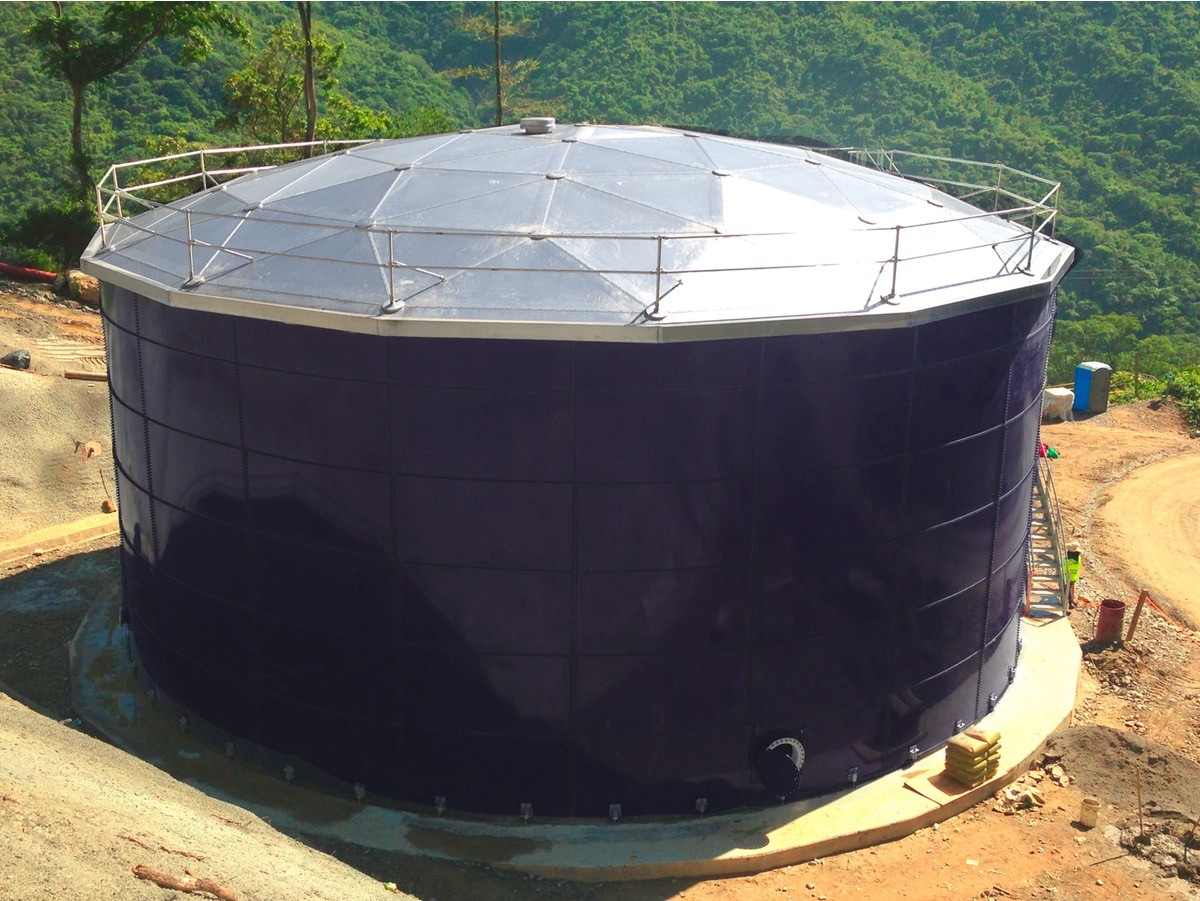

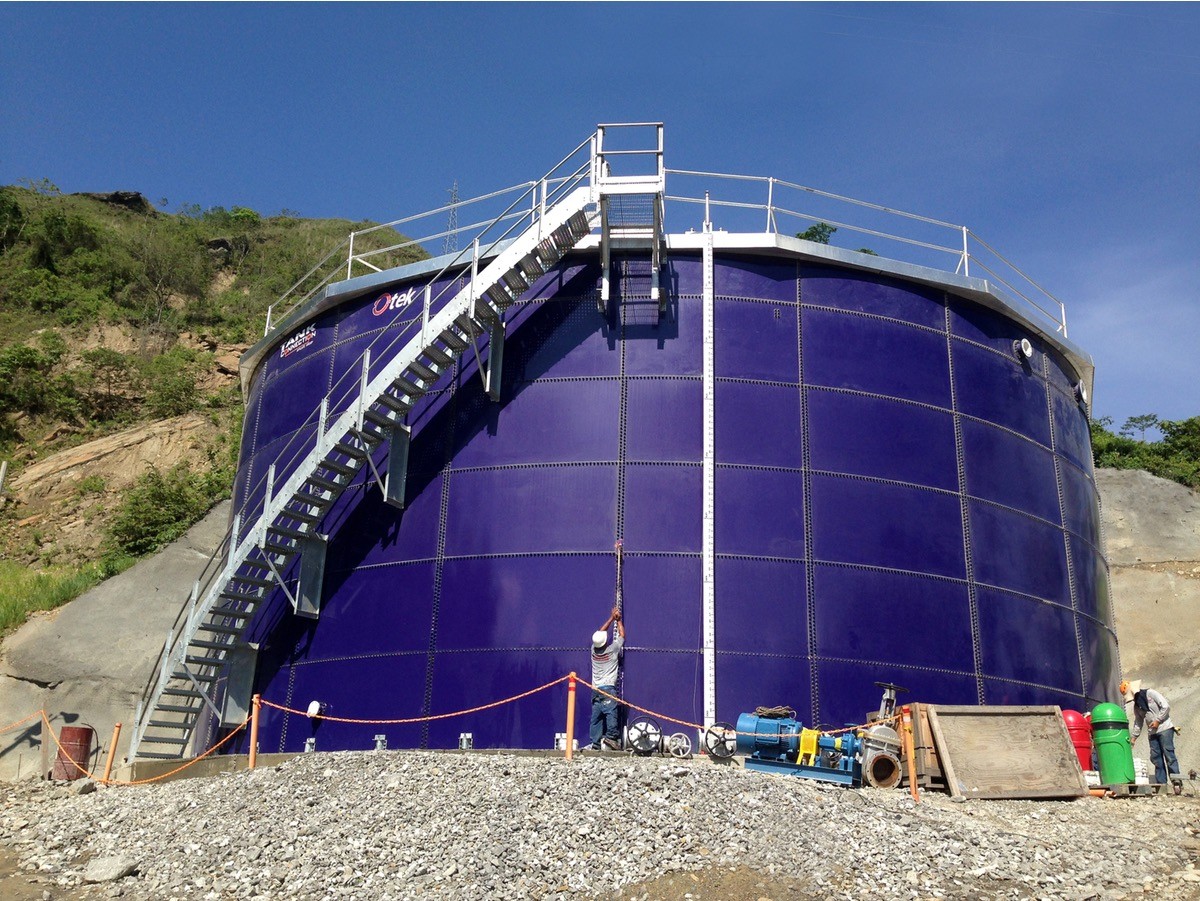

Pescadero, Colombia

Potable Water
Bolted RTP Design, Aluminum Geodesic Dome

• Quantity:
• Diameter: 64.62 ft (19.7 m)
• Height: 27.45 ft (8.37 m)
• Volume: 661,160 gal (2,503 cu. m)

Costa Rica

Fire Protection Water
Bolted RTP

• Quantity:
• Diameter: 33.85 ft. (10.32m)
• Height: 17.79 ft. (5.42m)
• Volume: 112,978 gallons (427.67 m3)

Jamaica

Potable Water
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 21.54 ft (6.56 m)
• Height: 14.89 ft (4.53 m)
• Volume: 37,393 gal (141.55 cu. m)

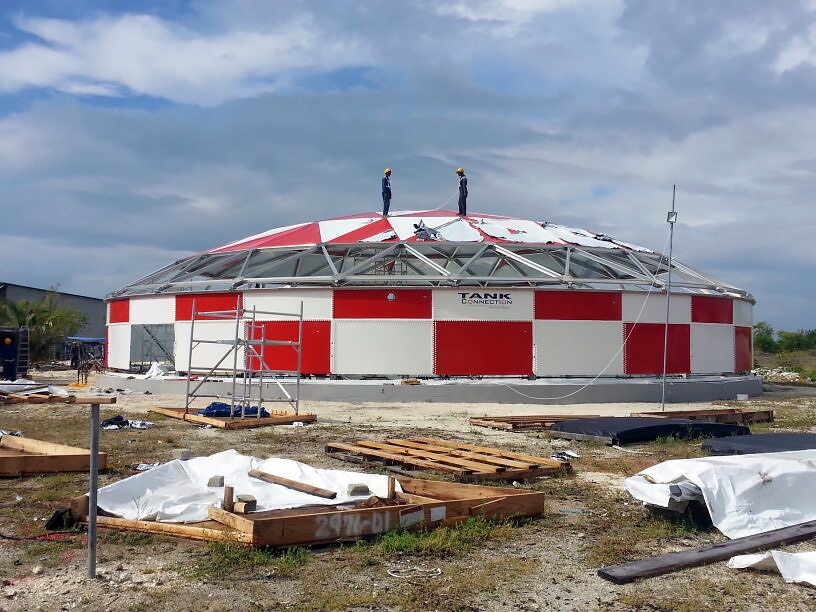

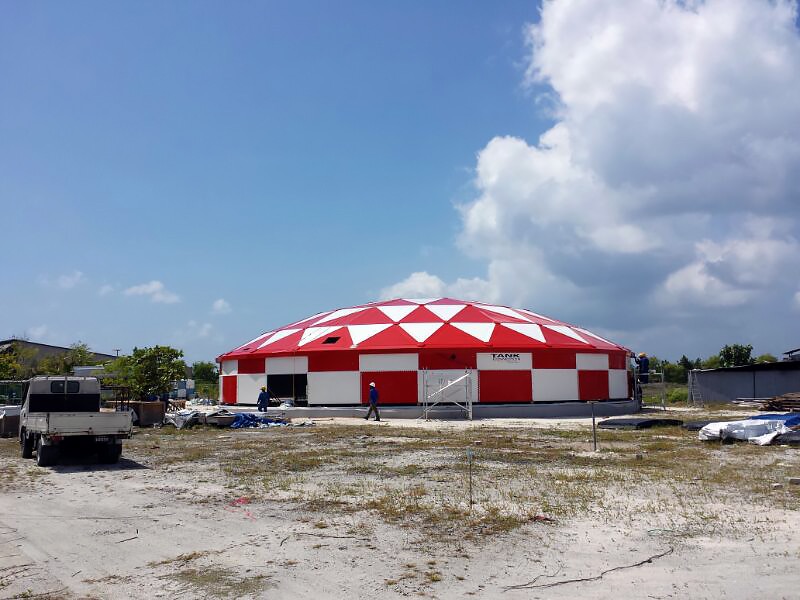

Maldives

Pure Water
Bolted RTP Design, Aluminum Dome

• Quantity:
• Diameter: 83.18 ft (25.36 m)
• Height: 33.25 ft (10.14 m)
• Volume: 1,331,427 gal. (5,040 cu. m)

Nigeria

Fire Protection Water
Bolted RTP, Aluminum Geodesic Dome

• Quantity:
• Diameter: 59.42 ft (18.11 m)
• Height: 24.55 ft (7.48 m)
• Volume: 488,851 gal (1850.5 cu. m)

Guam

Potable Water
Precision Bolted RTP Design, Geodesic Dome

• Quantity:
• Diameter: 98.46 ft (30.01 m)
• Height: 27.72 ft (8.45 m)
• Volume: 1,483,900 gal (5,678.1 cu. m)

McComas, West Virginia

Potable Water Storage
Elevated Water Tank - Poster Series

• Quantity: 1
• Diameter: 21.54 ft (6.57 m)
• Height: 95 ft (28.96 m)
• Volume: 56,000 gal (211.98 m³)

View Case Study

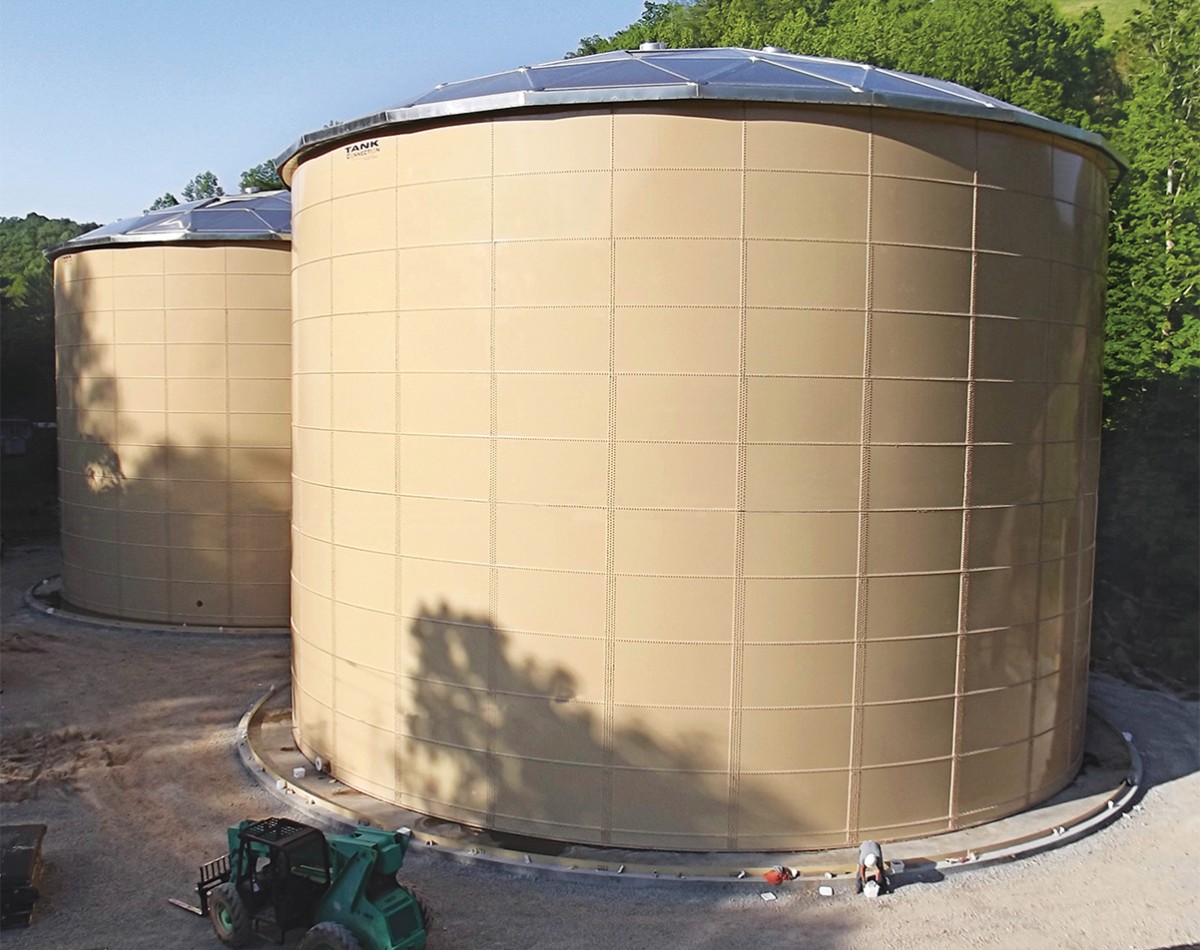

Wileyville, WV

Frac Sand Process Water
Precision Bolted RTP Design, Aluminum Dome

• Quantity: 2
• Diameter: Inner tank: 80.21 ft (24.5 m), outer tank: 89.13 ft (27.2 m)
• Height: Inner tank: 54.52 ft (16.6 m), outer tank: 52.85 ft (16.1 m)
• Volume: Inner tank: 2,023,154 gal (7,658 cu. m)

Potable Water
Precision Bolted RTP Design

• Quantity:
• Diameter: 59.42 ft (18.1 m)
• Height: 34.48 ft (10.5 m)
• Volume: 601,659 gal (2,277.5 cu. m)

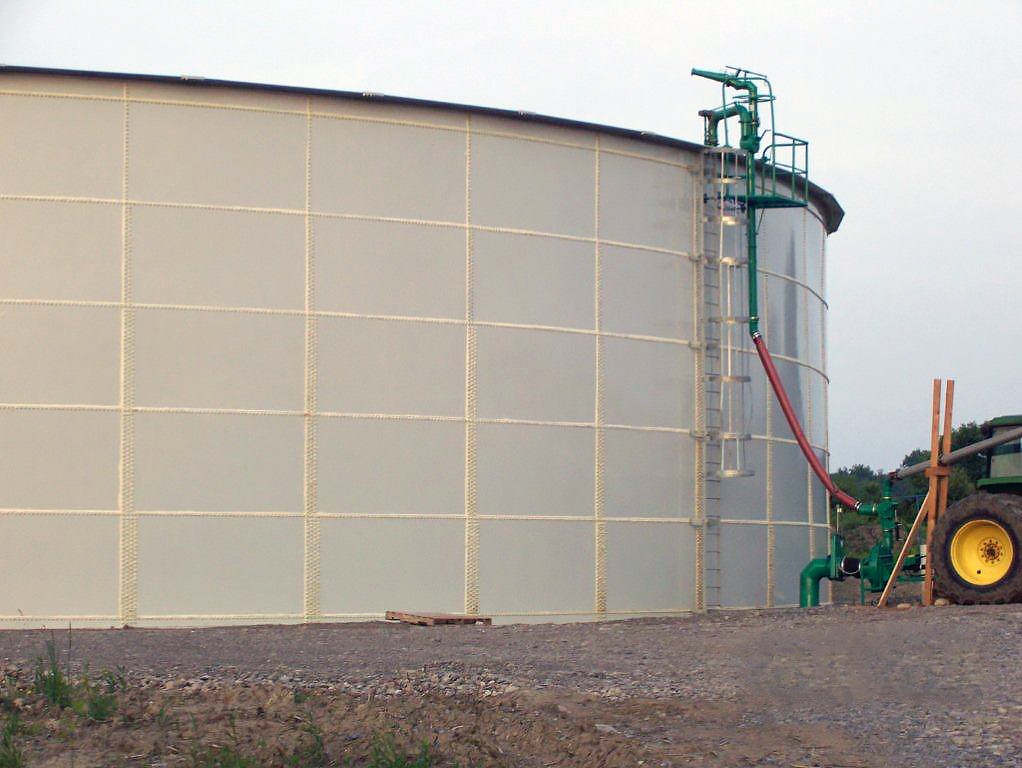

Pavilion, NY

Animal Waste, Manure Storage
Precision Bolted RTP Design

• Quantity:
• Diameter: 130.72 ft (39.8 m)
• Height: 25.78 ft (7.9 m)
• Volume: 2,488,191 gal (9,418 cu. m)

Panama

Steel Oil Tanks
Aluminum Geodesic Domes

• Quantity: 6
• Diameter: 100 ft (30.48 m)
• Height:
• Volume:

• Quantity: 4
• Diameter: 75 ft (22.86 m)
• Height:
• Volume:

Potable Water
Bolted RTP

• Quantity: 1
• Diameter: 20.8 ft (6.34 m)
• Height: 49.69 ft (15.15 m)
• Volume: 123,706 gal (468.28 cu. m)

Elrama, PA

Municipal Water
Aluminum Geodesic Dome

• Quantity: 1
• Diameter: 119.34 ft (36.37 m)
• Height:
• Volume:

Ridgeway, VA

Nylon Pellet
Shop-Welded Tank

• Quantity: 1
• Diameter: 11.92 ft (6.63 m)
• Height: 68 ft (20.73 m)
• Volume: 3,101 ft³ (working capacity), 6,307 ft³ (level full capacity)

Lycoming County, PA

Process Water
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 190.77 ft (58.15 m)
• Height: 21.65 ft (6.6 m)
• Volume: 4,202,110 gal (15,906.7 cu. m)

Stebbins, AK

Potable Water
Precision Bolted RTP Design

• Quantity: 1
• Diameter: 61.54'
• Height: 23.59'
• Volume: 502532 gallons

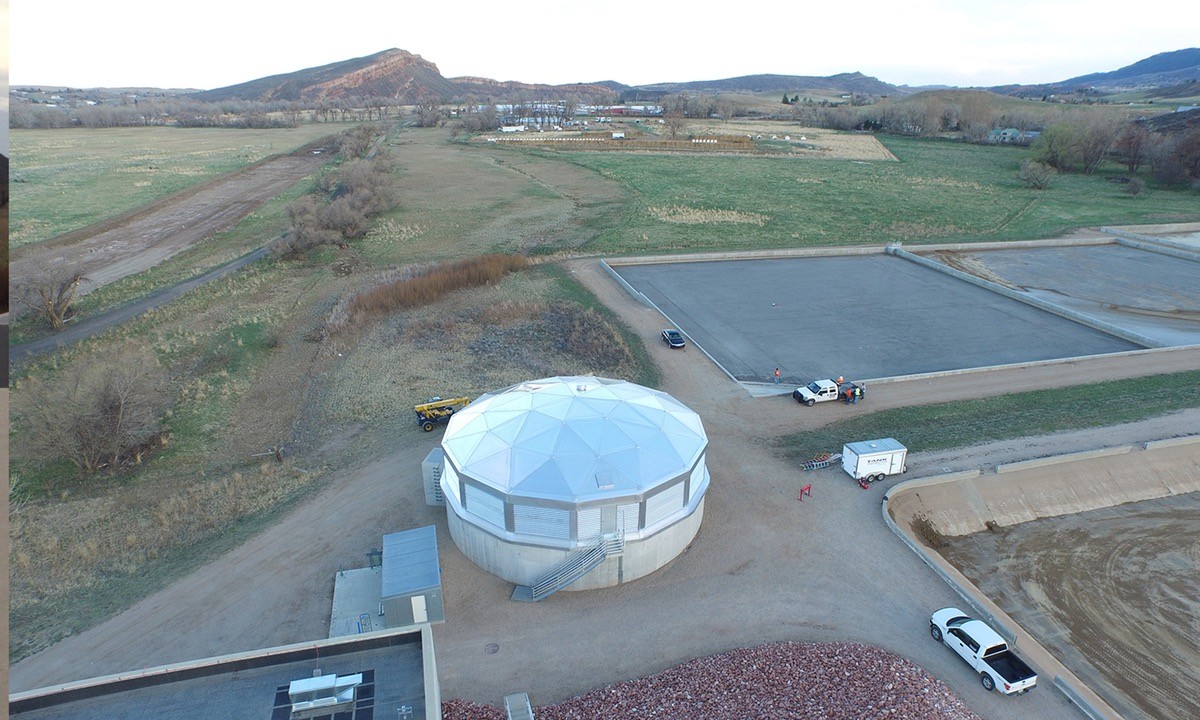

Greeley, CO

Water
Aluminum Geodesic Dome

• Quantity: 1
• Diameter: 60'
• Height: 17'
• Volume:

Cashmere, WA

Wastewater
Precision Bolted RTP Design

• Quantity: 1
• Diameter: 26.74'
• Height: 24.55'
• Volume: 92625 gallons

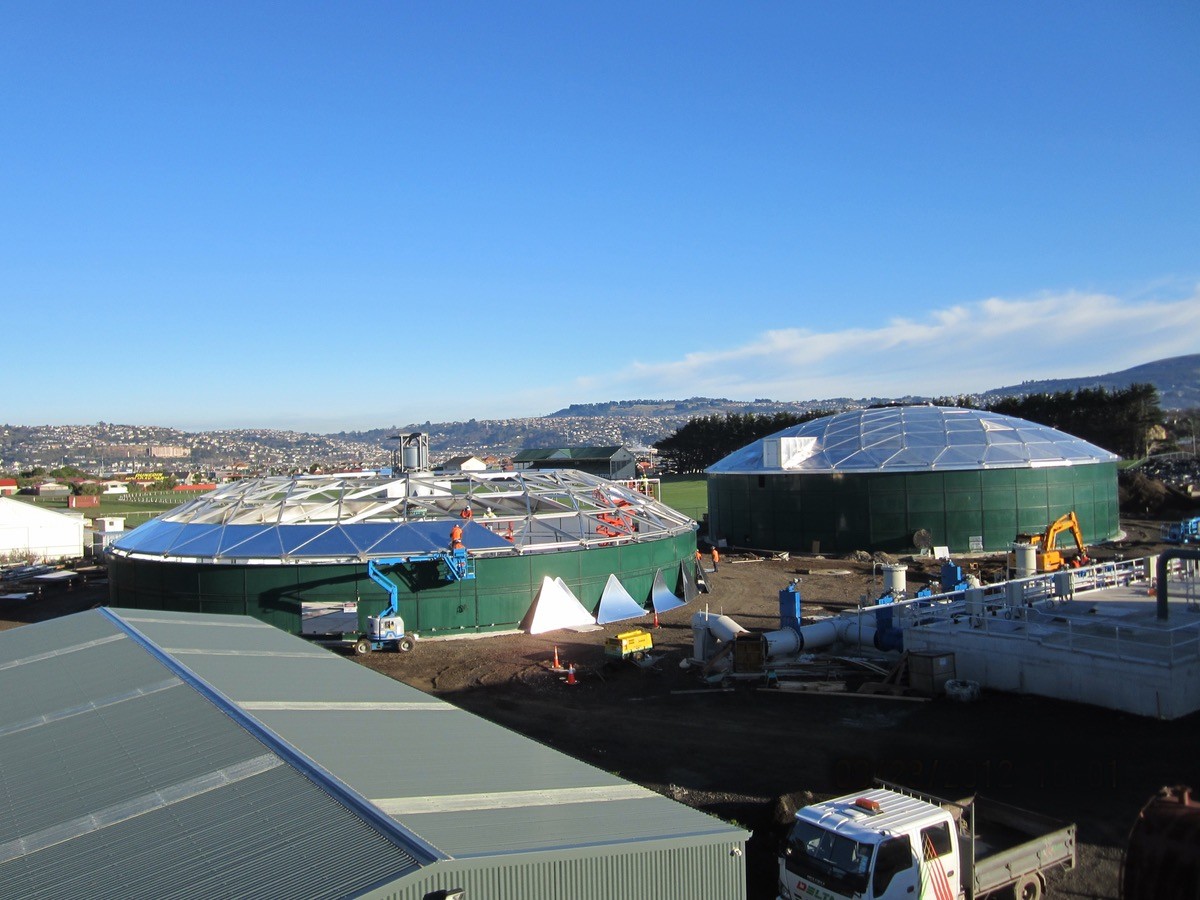

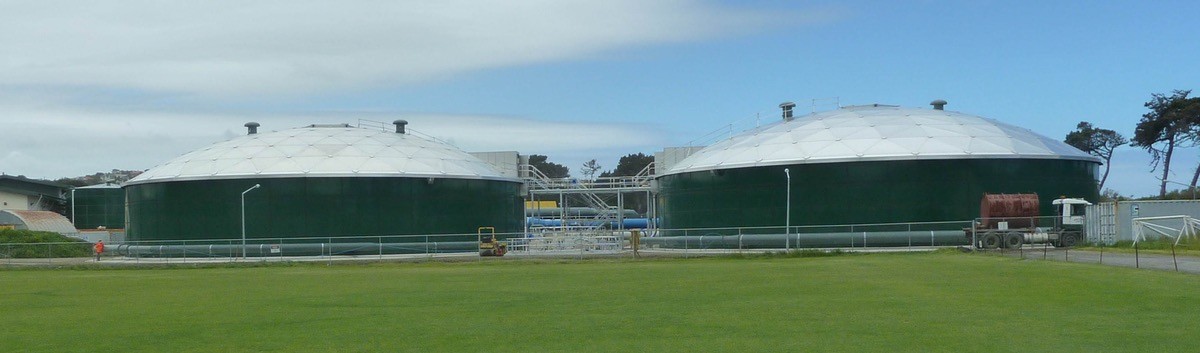

Dunedin, New Zealand

Bio Trickling Filter (B.T.F.)
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 121.81 ft (37.13 m)
• Height: 21.43 ft
• Volume: 1,624,980 gal

• Quantity: 1
• Diameter: 21.43 ft (6.53 m)
• Height: 28.68 ft (8.74 m)
• Volume: 278,189 gal (1,053 cu. m)

• Quantity: 1
• Diameter: 24.62 ft (7.50 m)
• Height: 23.85 ft (7.27 m)
• Volume: 81,347 gal (300 cu. m)

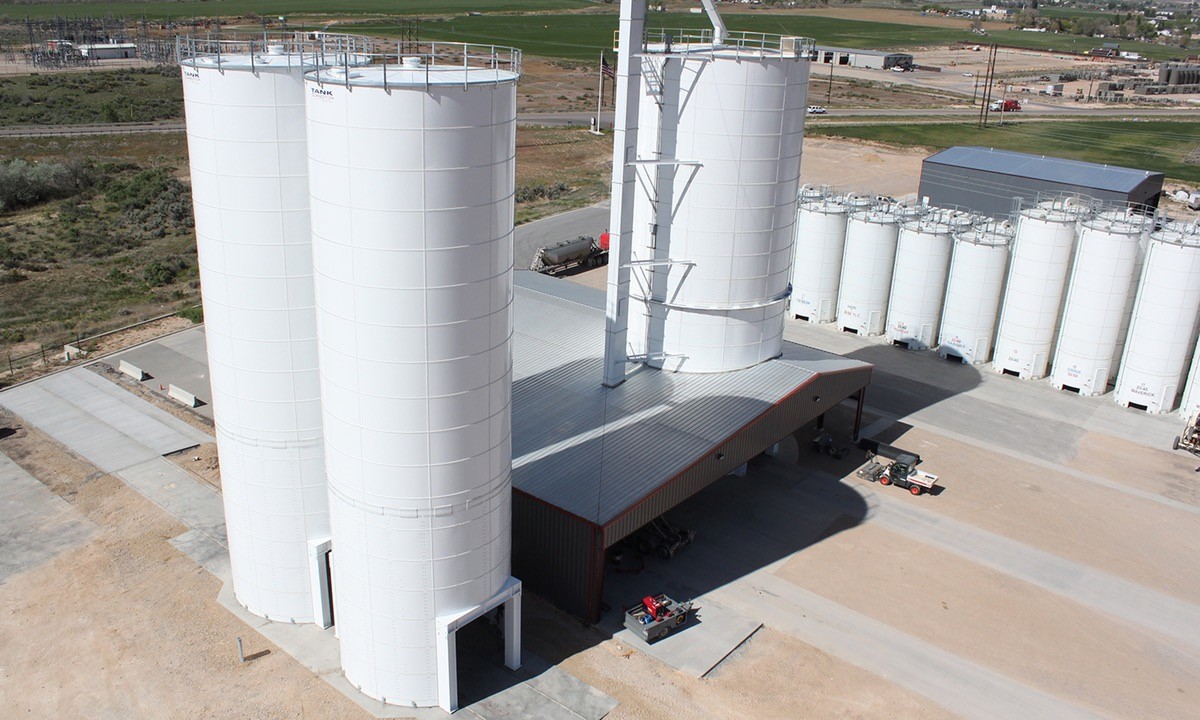

Vernal, UT

Sand Storage
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 26.74'
• Height: 24.55'
• Volume: 33,515 cubic feet

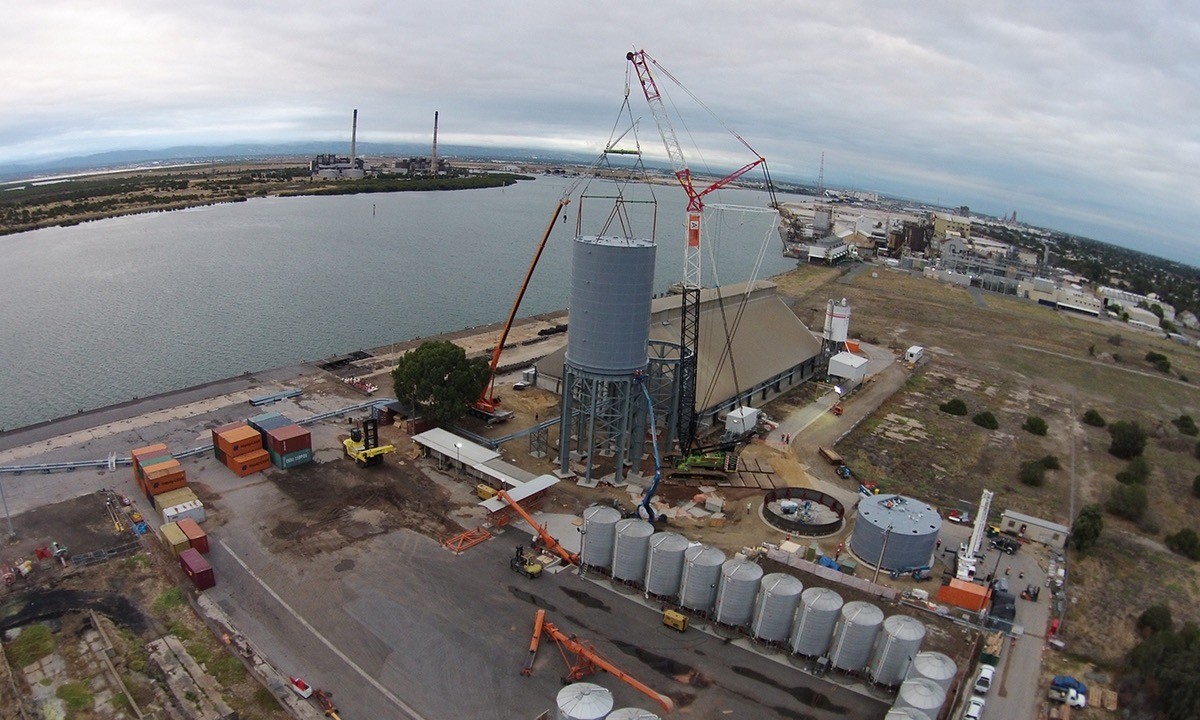

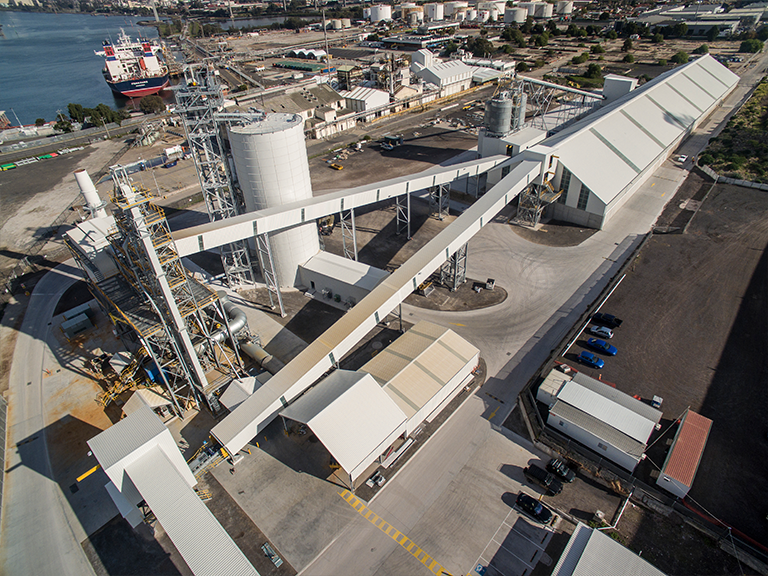

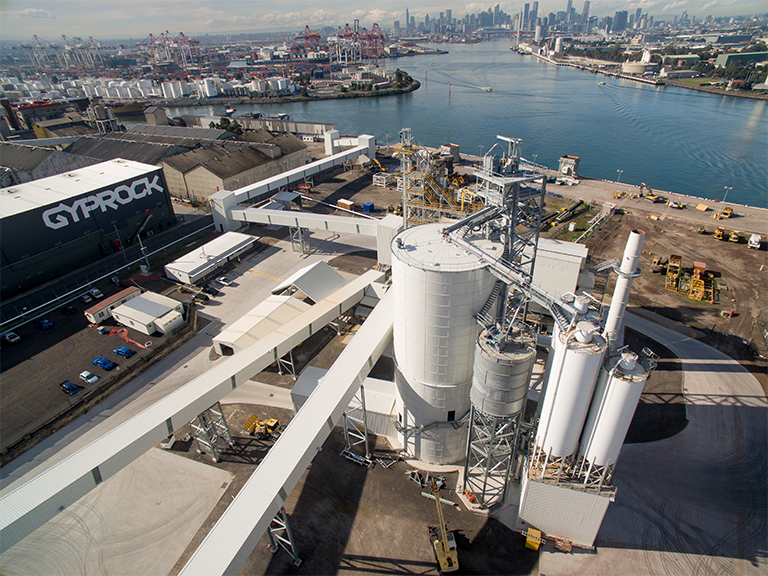

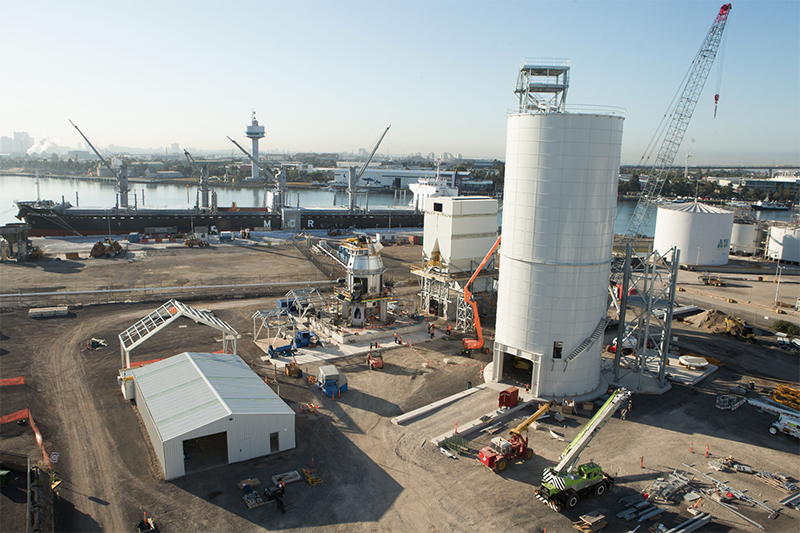

Melbourne, Australia

Ground Slag
Precision Bolted RTP Design

• Quantity: 1
• Diameter: 44.56'
• Height: 107.69'
• Volume: 93,566 cubic feet

Doha, Qatar

Municipal Wastewater
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 130.72 ft (39.8 m)
• Height: 28.49 ft (8.7 m)
• Volume: 2,641,721 gal (10,000 cu. m)

• Quantity: 4
• Diameter: 101.01 ft (30.79 m)
• Height: 24.62 ft (7.51 m)
• Volume: 1,358,045 gal (5,100 cu. m)

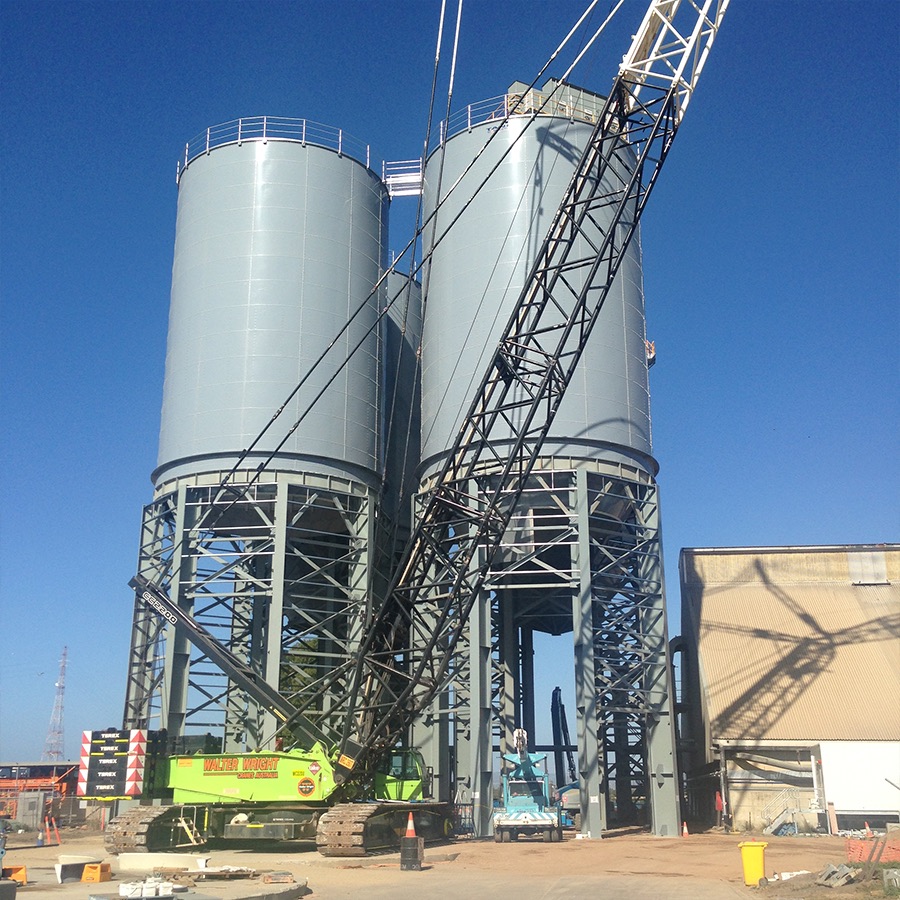

Adelaide, Australia

• Quantity: 4
• Diameter: 41.59'
• Height: 63.22'
• Volume: 98,117 cubic feet

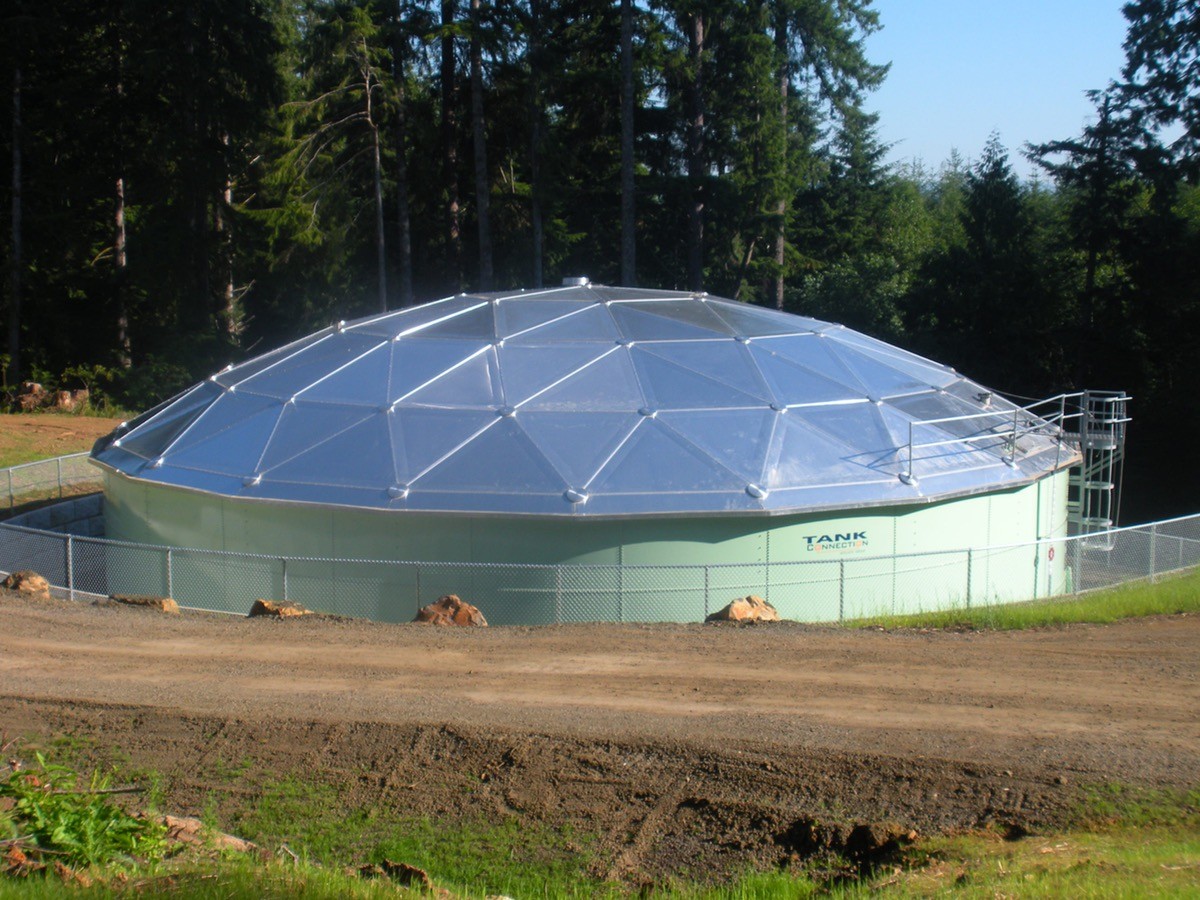

Lowell, OR

Potable Water
Precision Bolted RTP Design

• Quantity:
• Diameter: 50.51 ft (15.4 m)
• Height: 31.58 ft (9.6 m)
• Volume: 435,949 gal (1650.25 cu. m)

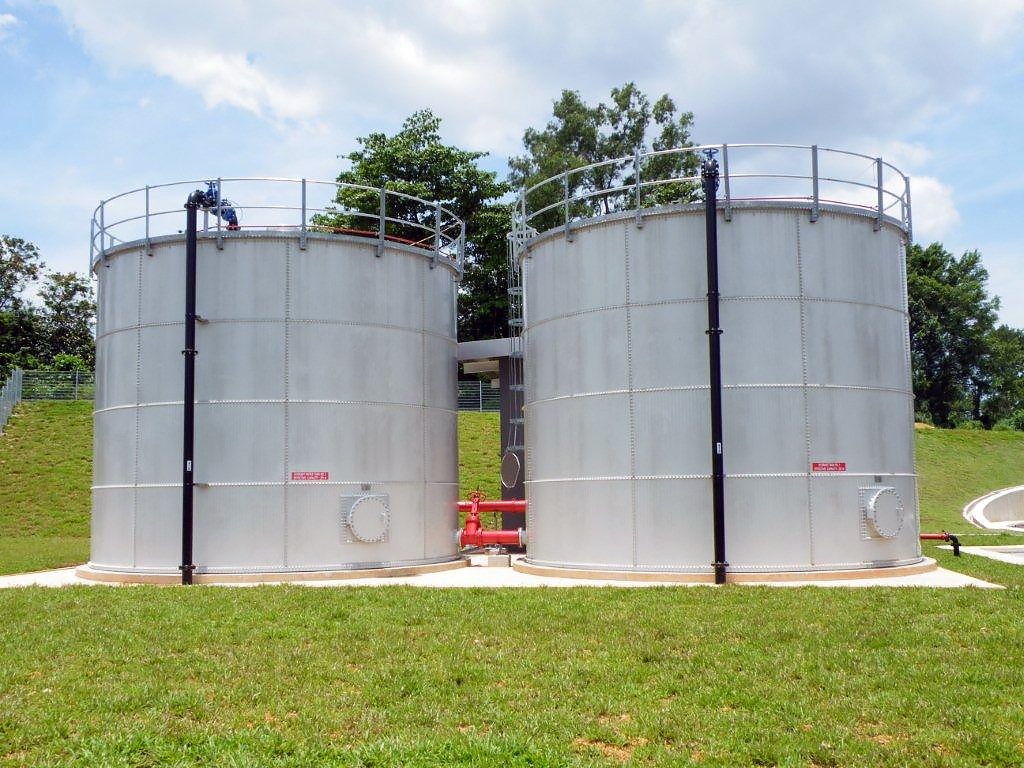

Singapore

Fire Protection Water
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 24.62 ft (7.5 m)
• Height: 19.72 ft (6.01 m)
• Volume: 59,074 gal (223 cu. m)

Bridgeport, CT

Wastewater
Precision Bolted RTP Design

• Quantity: 3
• Diameter: 18.46 ft (5.63 m)
• Height: 30.35 ft (9.25 m)
• Volume: 53,760 gal (203.5 cu. m)

Australia

Wastewater
Precision Bolted RTP Design

• Quantity: 2
• Diameter: 100.77 ft (30.71 m)
• Height: 19.02 ft (5.8 m)
• Volume: 1,074,809 gal (4,068 cu. m)

Barcelona, Spain

Wastewater
Precision Bolted RTP Design

• Quantity:
• Diameter: 32.68 ft (9.96 m), 49.23 ft (15.01 m)
• Height: 23.59 ft (7.19 m), 58.39 ft (17.8 m)
• Volume: 137,634 gal (521 cu. m), 808,102 gal (3,059 cu. m)

Astoria, OR

Potable Water
Bolted RTP Design, Aluminum Dome

• Quantity:
• Diameter: 80.21 ft (24.45 m)
• Height: 12.95 ft (3.95 m)
• Volume: 451,775 gal (1,710.15 cu. m)

Greenville, PA

Potable Water
Bolted RTP, Aluminum Dome

• Quantity:
• Diameter: 47.53 ft (14.49 m)
• Height: 79.92 ft (24.36 m)
• Volume: 1,054,300 gal (3990.96 cu. m)

St. Croix

Wastewater
Precision Bolted RTP Design

• Quantity: 3
• Diameter: 136.67’ (41.66m)
• Height: 39.32’ (11.98m)
• Volume: 1,365,175 gal (5,168m3)

• Quantity: 1
• Diameter: 29.71’ (9.06m)
• Height: 26.6’ (8.11m)
• Volume: 127,574 gal (482.92m3)

• Quantity: 1
• Diameter: 47.53’ (14.49m)
• Height: 31.43’ (9.58m)
• Volume: 390,728 gal (1479.06m3)

Hoyt Lakes, MN

Wastewater
Precision Bolted RTP Design

• Quantity: 1
• Diameter: 130.72 ft (39.84 m)
• Height: 24.82 ft (7.57 m)
• Volume: 2,290,900 gal (8,672 cu. m)

Bear Lake, ID

Fire Protection Water
Bolted RTP

• Quantity: 1
• Diameter: 38.62’ (11.77m)
• Height: 21.07’ (6.42m)
• Volume: 175,903 gallons (665.87m3)

Weslaco, TX

Fire Protection Water
Bolted RTP

• Quantity: 1
• Diameter: 29.71 ft (9.06 m)
• Height: 34.22 ft (10.43 m)
• Volume: 172,257.73 gal (23,0275 cu. m)

Singapore

Potable Water
Bolted RTP, Aluminum Dome

• Quantity: 1
• Diameter: 130 ft (39.624m)
• Height: 45.997 ft (14.02 m)
• Volume: 4,632,938 gal (15,906.7 cu. m)

Bacadera Port, Aruba

Store and transfer cement from ocean barges
Precision Bolted RTP Design

• Quantity: 1
• Diameter: 41.59 ft (12.7 m)
• Height: 127.019 ft (38.7 m)
• Volume: 4444 tons (4031 m3)

View Case Study

Sao Paulo, Brazil

Potable Water
Bolted RTP Design, Aluminum Geodesic Dome

• Quantity: 2
• Diameter: 147.7ft (45.02 m)
• Height: 44.21 ft (13.47 m)
• Volume: 5,303,353 gal (20,075 cu. m)

View Case Study

St. Croix

Wastewater • Biogas Production Facility
Precision Bolted RTP Design, Anaerobic Digester

• Quantity: 3
• Diameter: 136.67 ft (41.66 m)
• Height: 39.32 ft (11.98 m)
• Volume: 4,094,624 gal (15,499 m³)

• Quantity: 1
• Diameter: 29.71 ft (9.06 m)
• Height: 26.6 ft (8.11 m)
• Volume: 127,574 gal (482.92 m³)

• Quantity: 2
• Diameter: 47.53 ft (14.49 m)
• Height: 31.43 ft (9.58 m)
• Volume: 390,728 gal (1479.06 m³)

View Case Study

Elrama, Pennsylvania

Municipal Water
Aluminum Geodesic Dome

• Quantity: 1
• Diameter: 119.34 ft (36.37 m)
• Height:
• Volume:

Water Wileyville, West Virginia

Weslaco, TX

Fire Protection Water
Bolted RTP

• Quantity: 1
• Diameter: 29.71 ft (9.06 m)
• Height: 34.22 ft (10.43 m)
• Volume: 172,257.73 gal (23,0275 m3)

View Case Study

Mexicali, Mexico

Rice & Wheat Bran
Shop-Weld

• Quantity: 4
• Diameter: 14 ft (4.27 m)
• Height: 87 ft (26.52 m)
• Volume: 10,000 cubic feet (283.2 m3)

• Quantity: 4
• Diameter: 12 ft (3.66 m)
• Height: 65 ft (19.81 m)
• Volume: 5,000 cubic feet (141.6 m3)

Barcelona, Spain

Wastewater
Precision Bolted RTP Design

• Quantity: 1
• Diameter: 32.68 ft (9.96 m)
• Height: 23.59 ft (7.19 m)
• Volume: 137,634 gal (521 m3)

• Quantity: 2
• Diameter: 49.23 ft (15.01 m)
• Height: 58.39 ft (17.8 m)
• Volume: 808,102 gal (3,059 m3)

View Case Study

Wileyville, WV

Frac Sand Process Water
Precision Bolted RTP Design, Aluminum Geodesic Dome

• Quantity: 2 - Inner Tank
• Diameter: 80.21 ft (24.5 m)
• Height: 54.52 ft (16.6 m)
• Volume: 2,023,154 gal (7,658 m3)

• Quantity: 2 - Outer Tank
• Diameter: 89.13 ft (27.2 m)
• Height: 52.85 ft (16.1 m)
• Volume:

View Case Study

SEXSMITH, ALBERTA, CANADA

Transloading Frac Sand
Precision Bolted RTP Design

• Quantity: 6
• Diameter: 30 ft (9 m)
• Height: 102 ft (31 m)
• Volume: 44,163 cubic feet (1250.6 m3)

View Case Study

MEXICALI, MEXICO

Rice & Wheat Bran
Shop-Weld

• Quantity: 4
• Diameter: 14 ft (4.27 m)
• Height: 87 ft (26.52 m)
• Volume: 10,000 cubic feet (283.2 m3)

• Quantity: 4
• Diameter: 12 ft (3.66 m)
• Height: 65 ft (19.81 m)
• Volume: 5,000 cubic feet (141.6 m3)

View Case Study

Salix, Iowa

Pebble lime, Recycle Ash, Well Water
Precision Bolted RTP Design, Shop-Weld

• Quantity: 1 - Bolted
• Diameter: 148.28 ft (45.2 m)
• Height: 54.52 ft (16.6 m)
• Volume: 68,450 cubic feet (1,938.3 m³)

• Quantity: 1 - Bolted
• Diameter: 32.68 ft (9.96 m)
• Height: 69.02 ft (21.04 m)
• Volume: 47,000 cubic feet (1,330.9 m³)

• Quantity: 2 - Shop-Weld
• Diameter: 13.92 ft (4.24 m)
• Height: 25 ft (7.62 m)
• Volume: 25,000 gal (94.6 m³)

View Case Study
