A CLOSER LOOK

FEATURED PROJECT: ST. CROIX, USVI

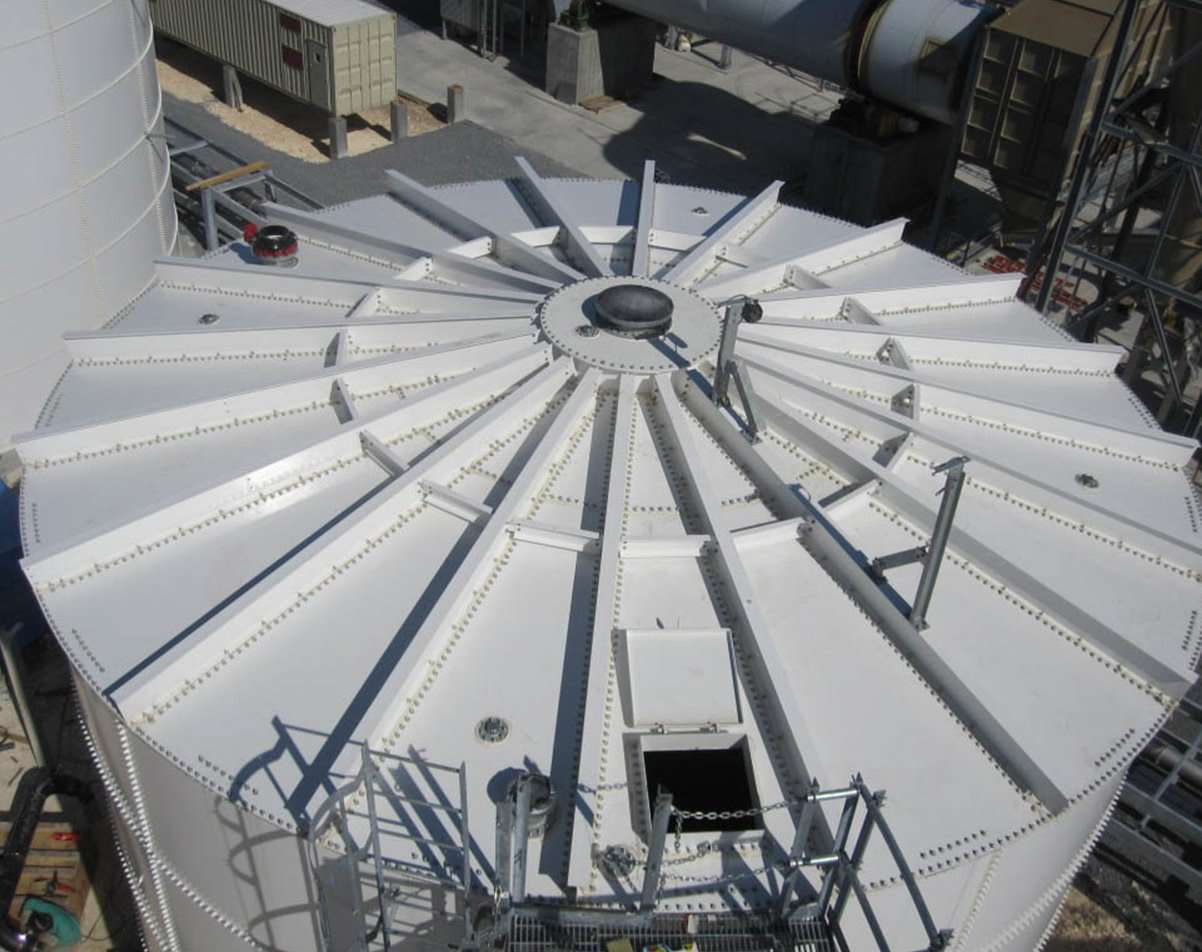

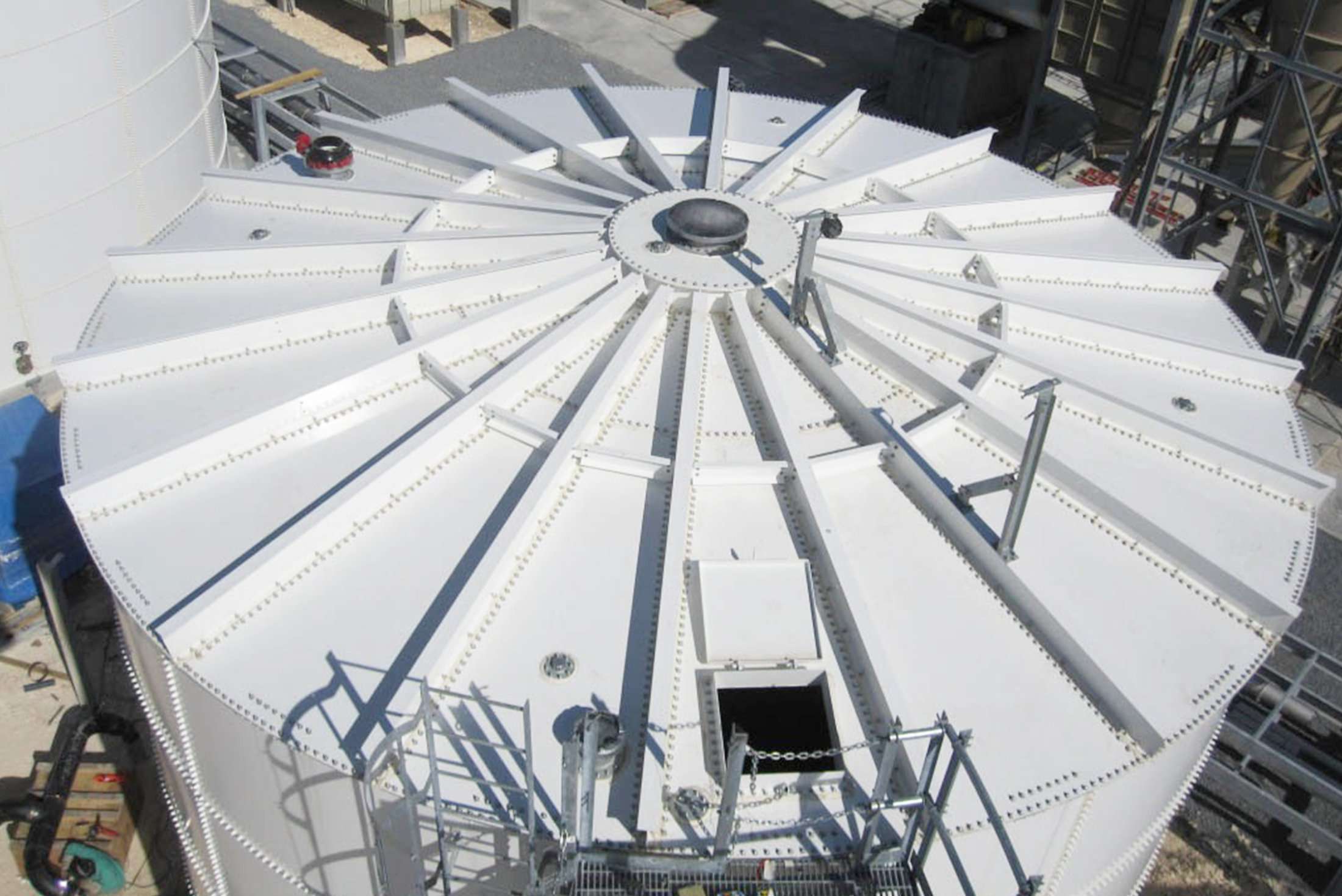

Post aeration tank utilizes BSR design and steel pressure deck design supplied by Tank Connection

Wastewater

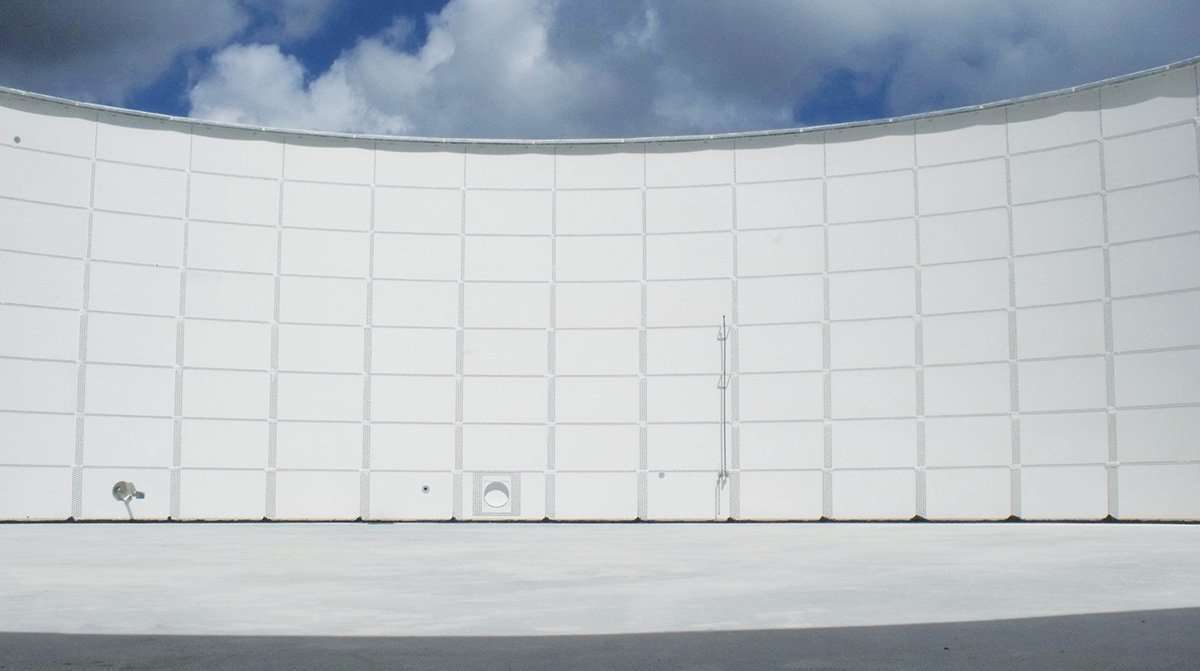

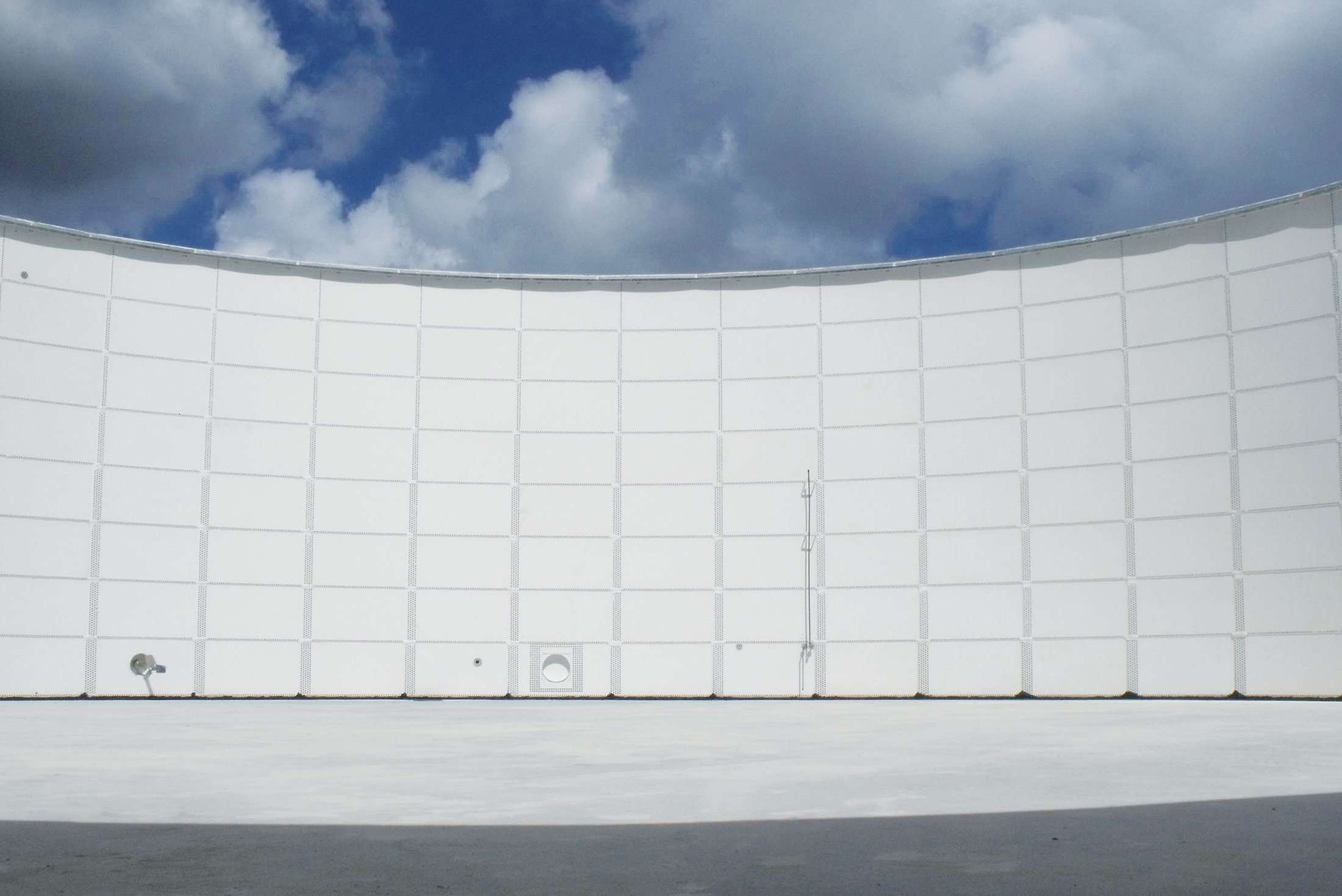

Tank Connection engineering is the authority in all types of storage tank foundations. We offer a variety of foundation designs for different applications, soil conditions and geographical locations.

Wastewater

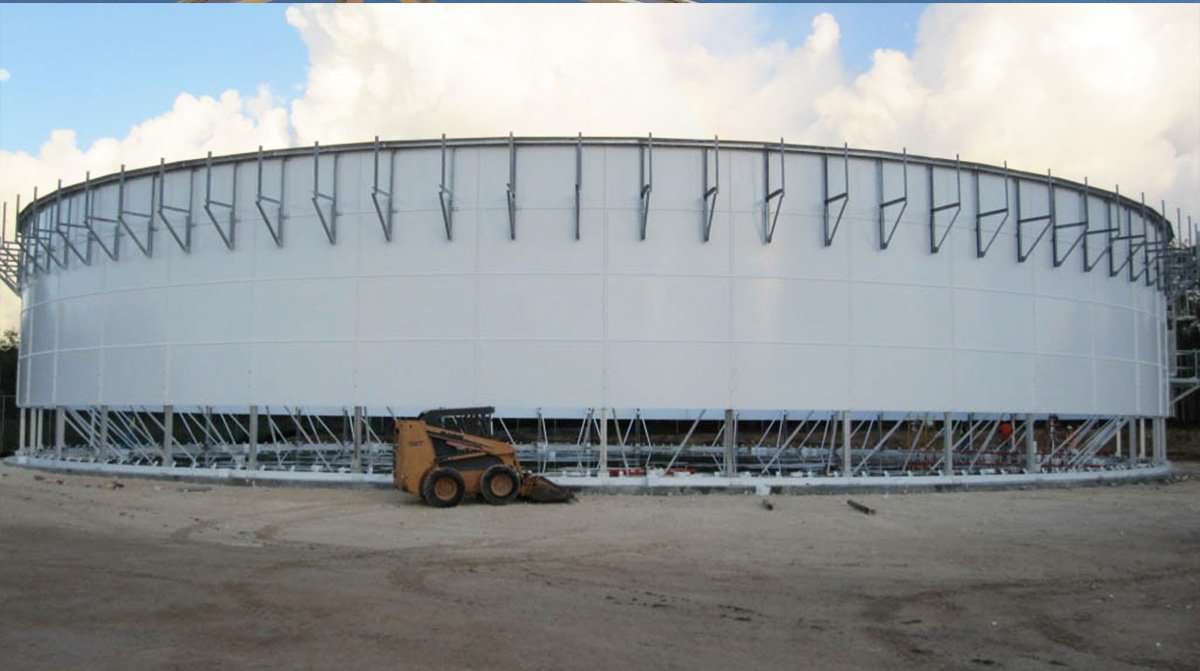

Tank Connection provides complete turnkey field installation service, utilizing a synchronized, hydraulic jacking process, which allows field crews to install liquid storage tanks at grade level.

Wastewater

Tank Connection Requested On Wastewater, Biogas Production Facility

Application: Wastewater • Biogas Production Facility

Storage Type: Precision Bolted RTP Design, Anaerobic Digester

  • Quantity: 3

  • Diameter: 136.67 ft (41.66 m)

  • Height: 39.32 ft (11.98 m)

  • Volume: 1,365,175 gal (5,168 m3)

  • Quantity: 1

  • Diameter: 29.71 ft (9.06 m)

  • Height: 26.6 ft (8.11 m)

  • Volume: 127,574 gal (482.92 m3)

  • Quantity: 2

  • Diameter: 47.53 ft (14.49 m)

  • Height: 31.43 ft (9.58 m)

  • Volume: 390,728 gal (1479.06 m3)


Project Details

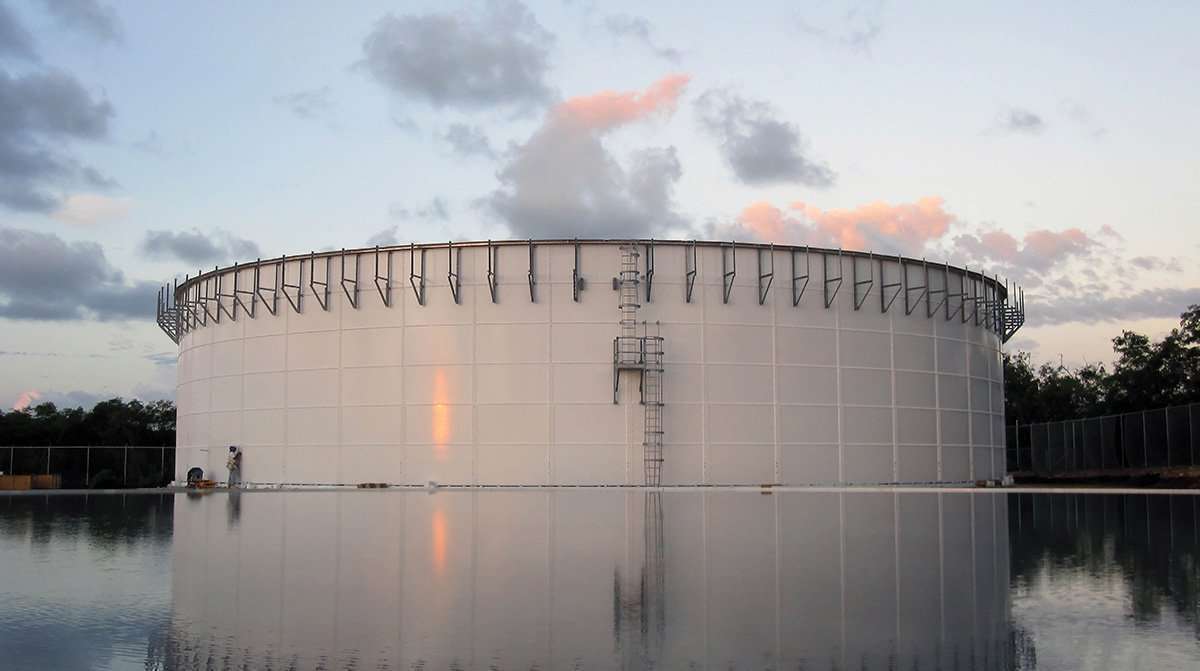

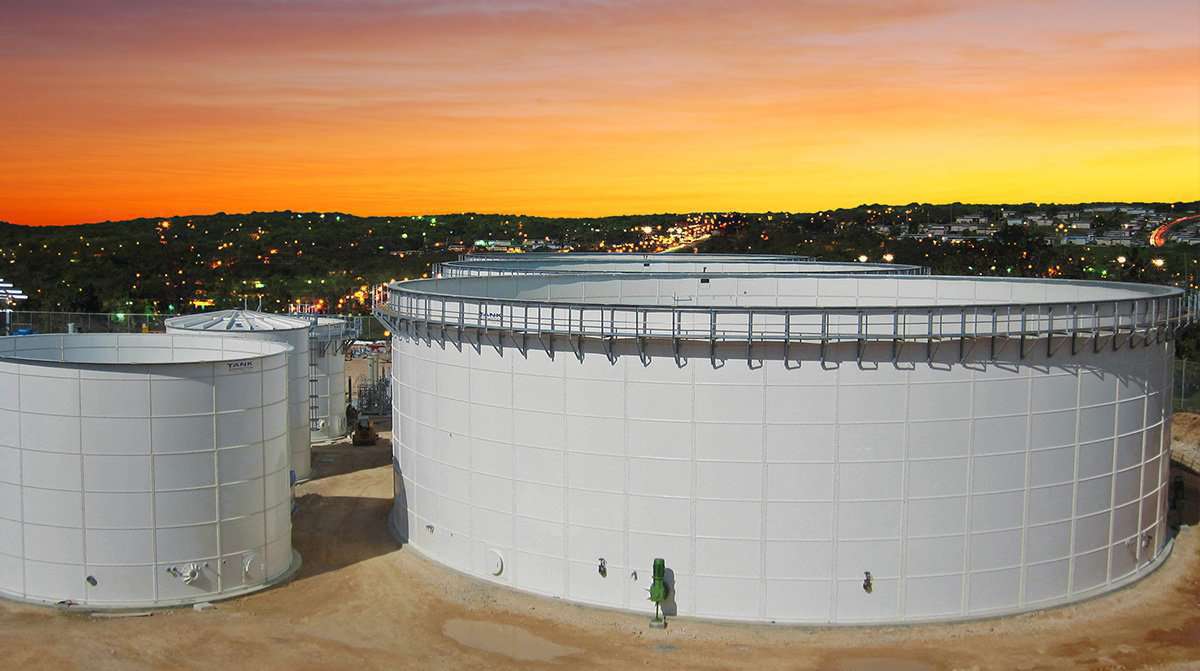

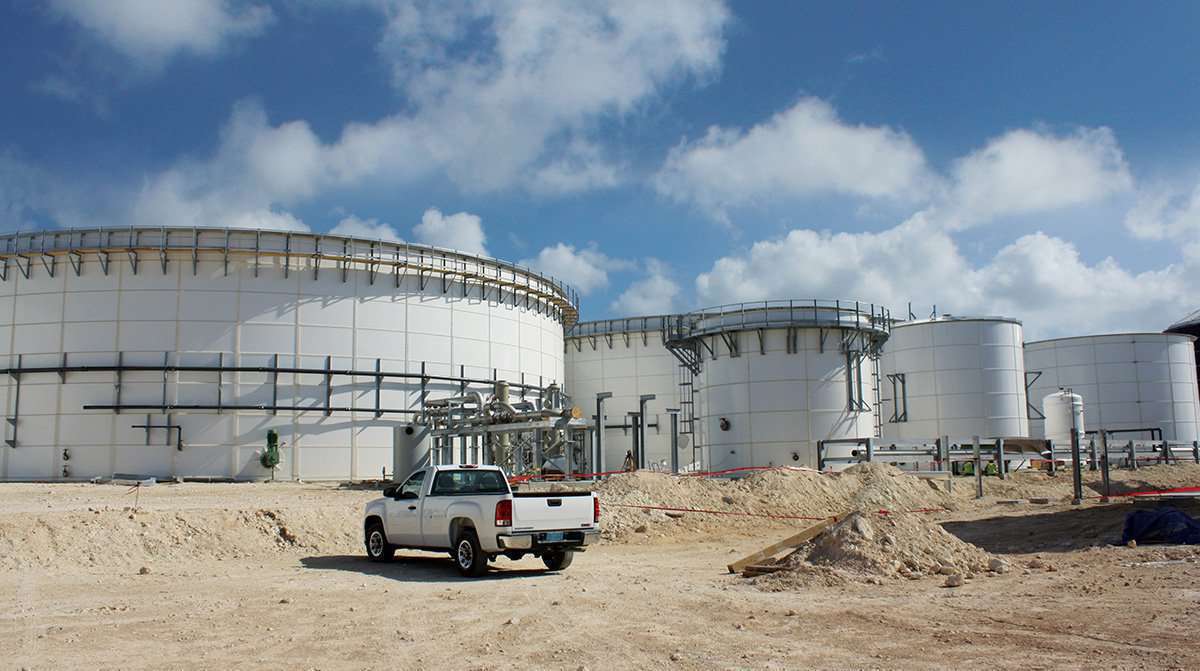

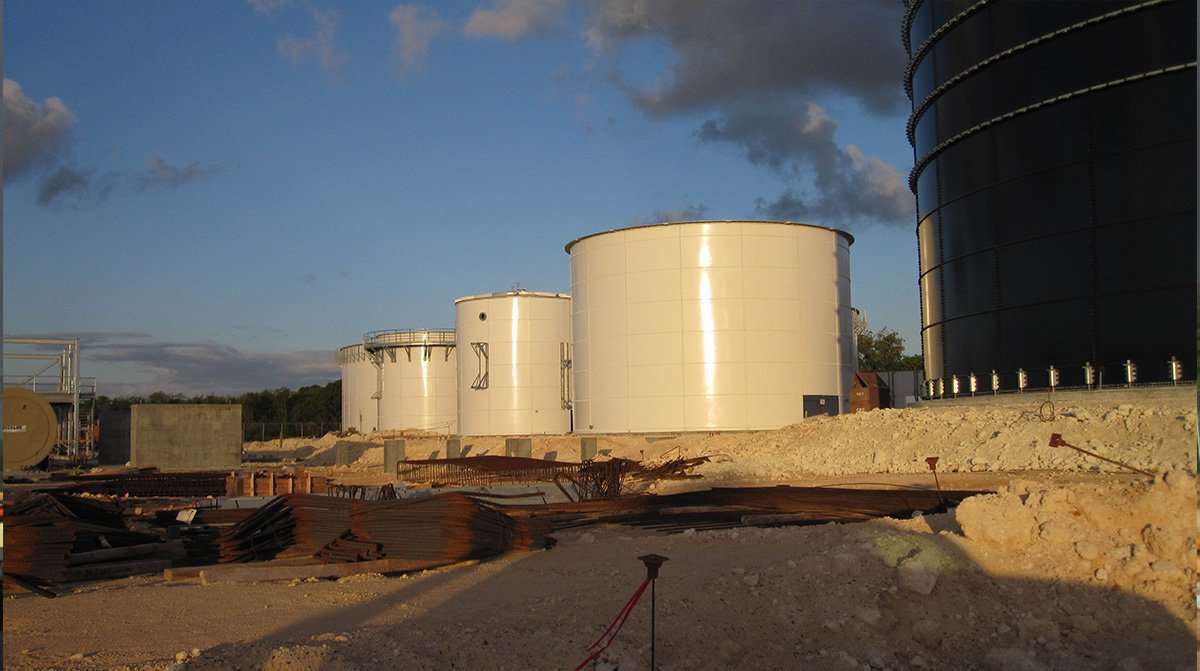

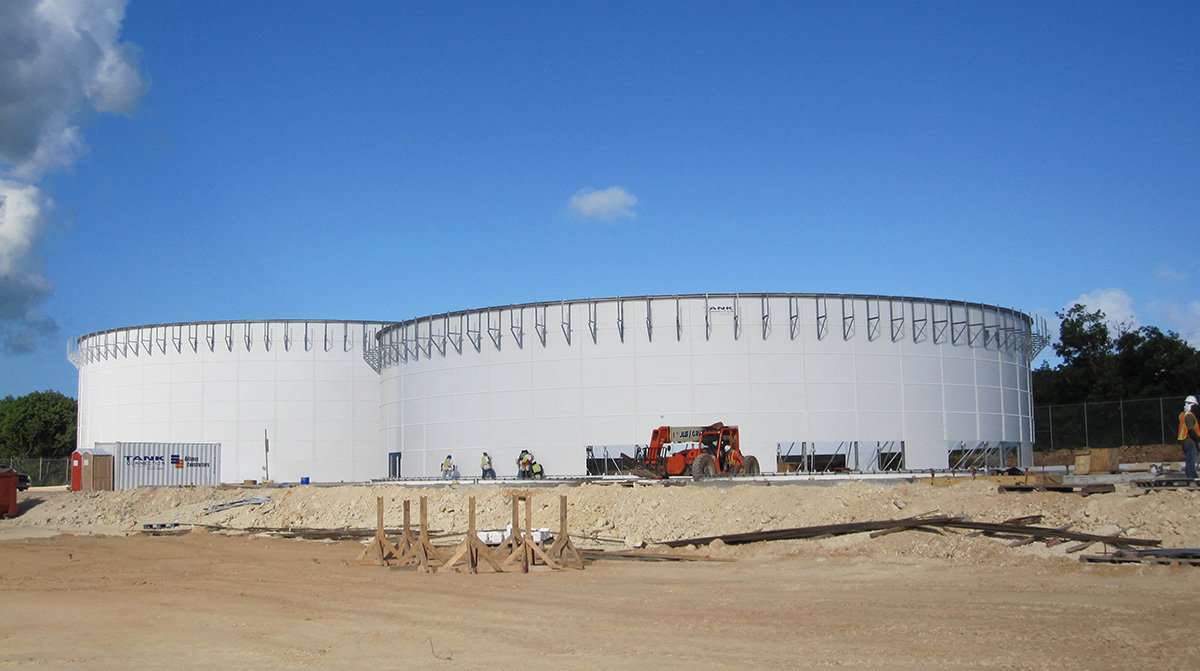

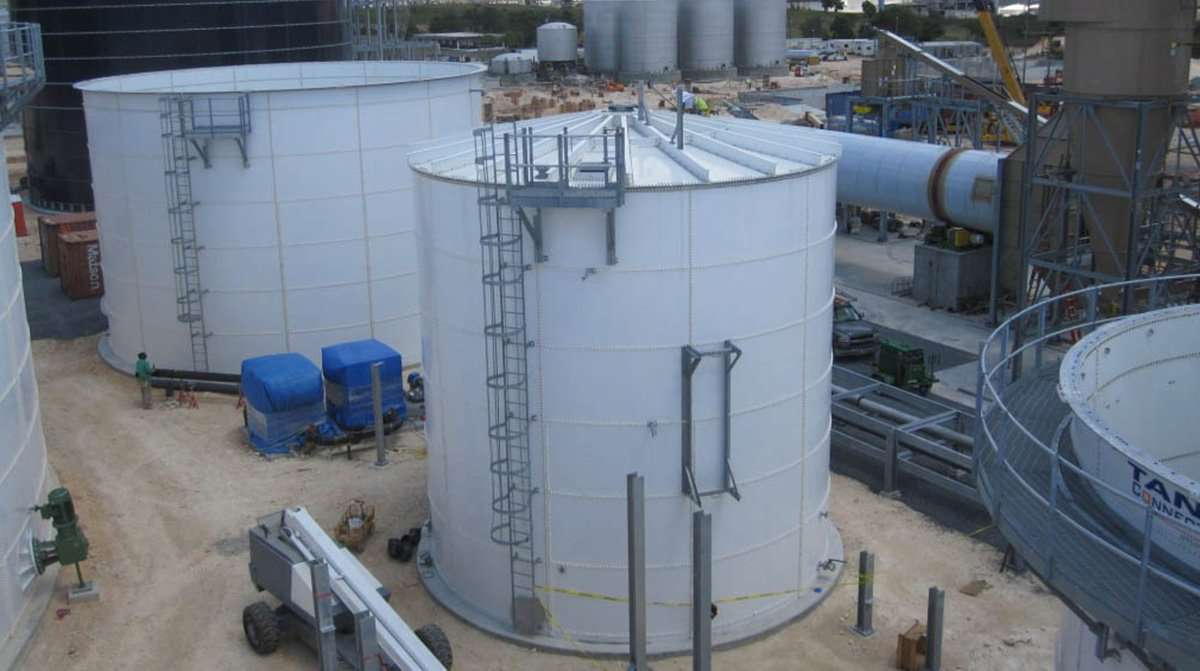

Biothane was selected for construction of a wastewater facility in support of a distillery in St. Croix. The large digesters utilize a base setting ring (BSR) design and are fitted with a floating membrane cover. The effluent buffer tank utilizes a BSR and is designed to accept a double “gas holder” membrane cover. Equalization tank utilizes BSR design and is open top. Post aeration tank utilizes BSR design and steel pressure deck design supplied by Tank Connection.

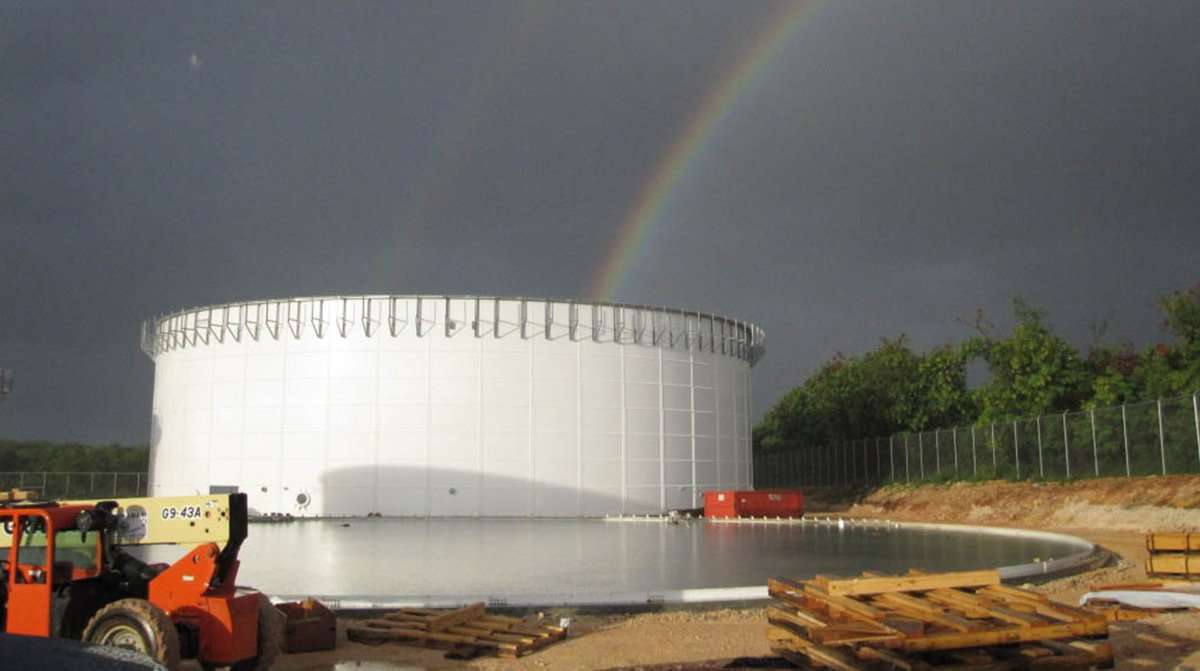

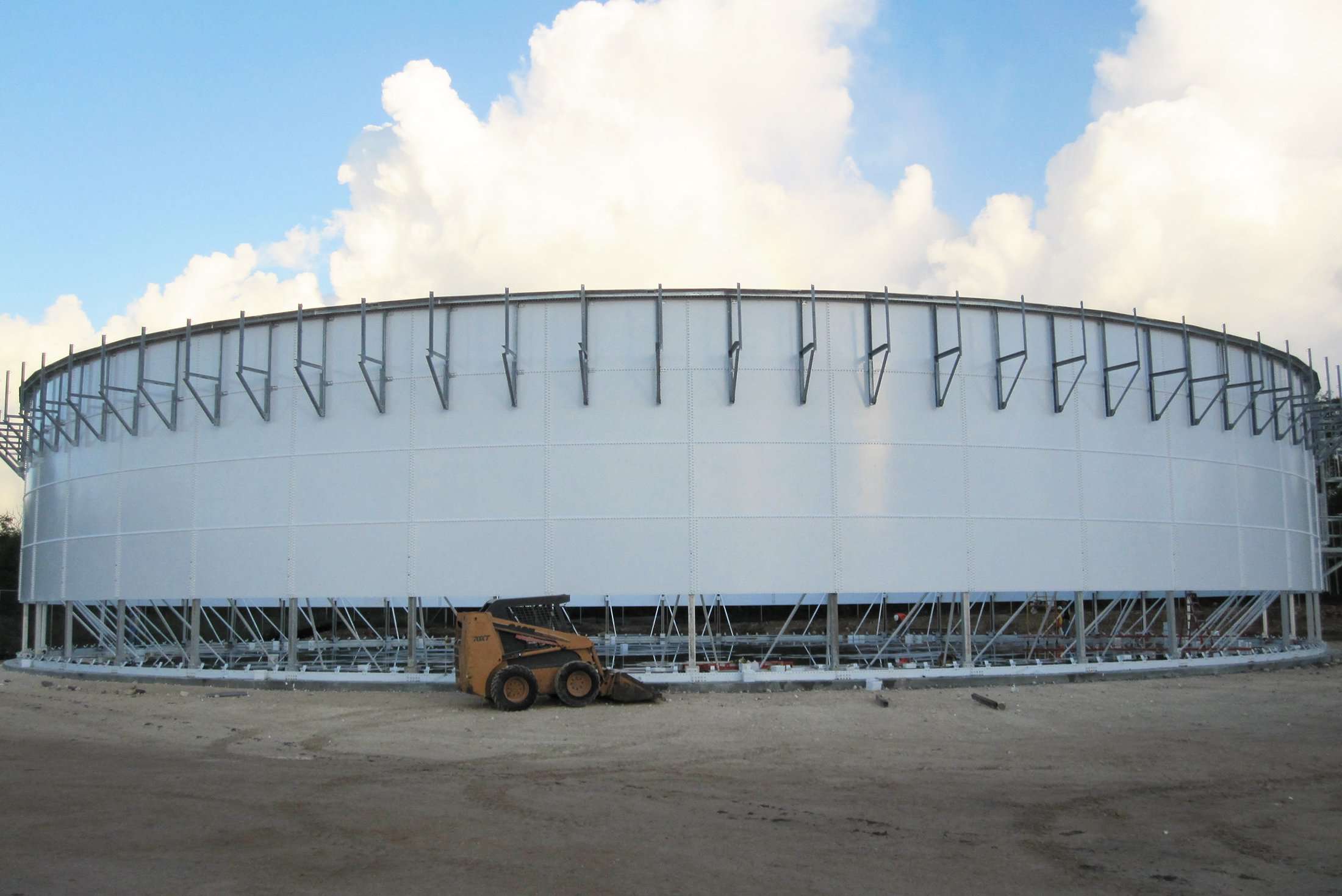

Tank Connection was selected by Biothane for their advanced RTP (rolled, tapered panel) bolted tank design which features exact manufacturing tolerances and the top rated LIQ Fusion 8000 FBE™ coating system available in the industry today. Tank Connection also provides complete turnkey field installation service, utilizing a synchronized, hydraulic screw jack process, which allows field crews to install liquid storage tanks at grade level.

Tank Connection’s manufacturing tolerances, LIQ Fusion coating system, engineering capabilities, top rated field construction services and their innovative pressure deck designs are just a few of the factors that make Tank Connection the engineers choice in storage treatment tanks

Project Map

Application Wastewater • Biogas Production Facility

Project Wastewater - St. Croix
